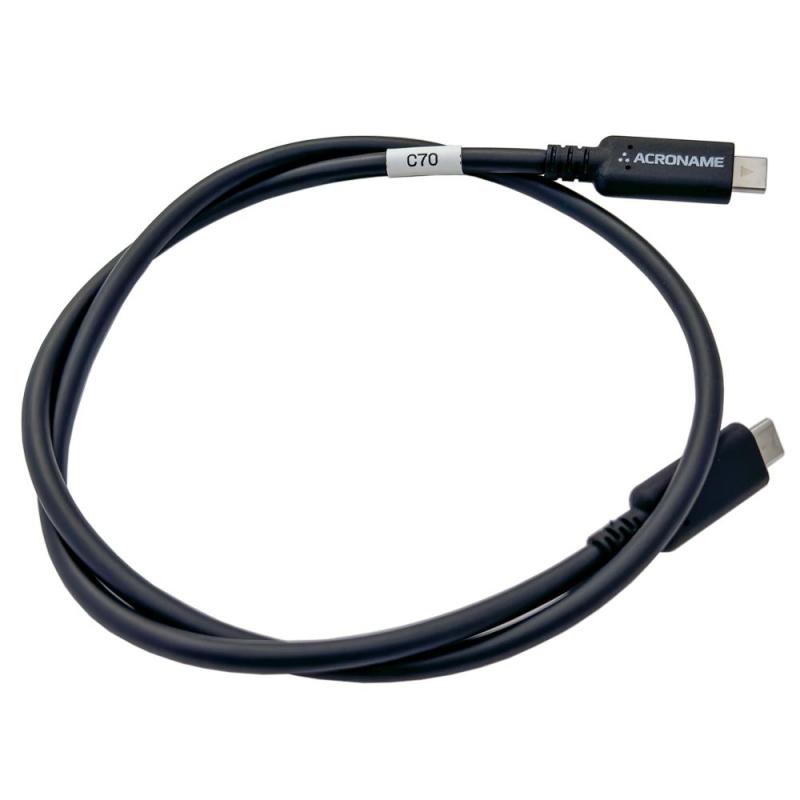

USB-C® Coaxial Universal Orientation Cable (UOC) is a customized USB-C male to USB-C male cable for use with Acroname’s programmable USB-C-Switch or USBHub3c. The coaxial UOC cable provides an orientation-agnostic USB-C connection, required for USB-C-Switch or USBHub3c software-based cable flip functionality, in addition to a coaxial connection for 20Gbps on 2 SuperSpeed data lanes for up to 40Gbps connections.
C70-USBC-UOC is a specialized USB-C UOC cable which carries two 480Mbps D+/D- data pair, so it should be used for flip testing of USB-C end devices which do not short the A and B side D+/D- lines to the USB-C connector.
Products which short D+/D- connections on A and B side of the USB-C connector should use the C67-USBC-UOC.
The coaxial UOC cable should only be used in test environments and is not a substitute for a standard USB-C cable.
