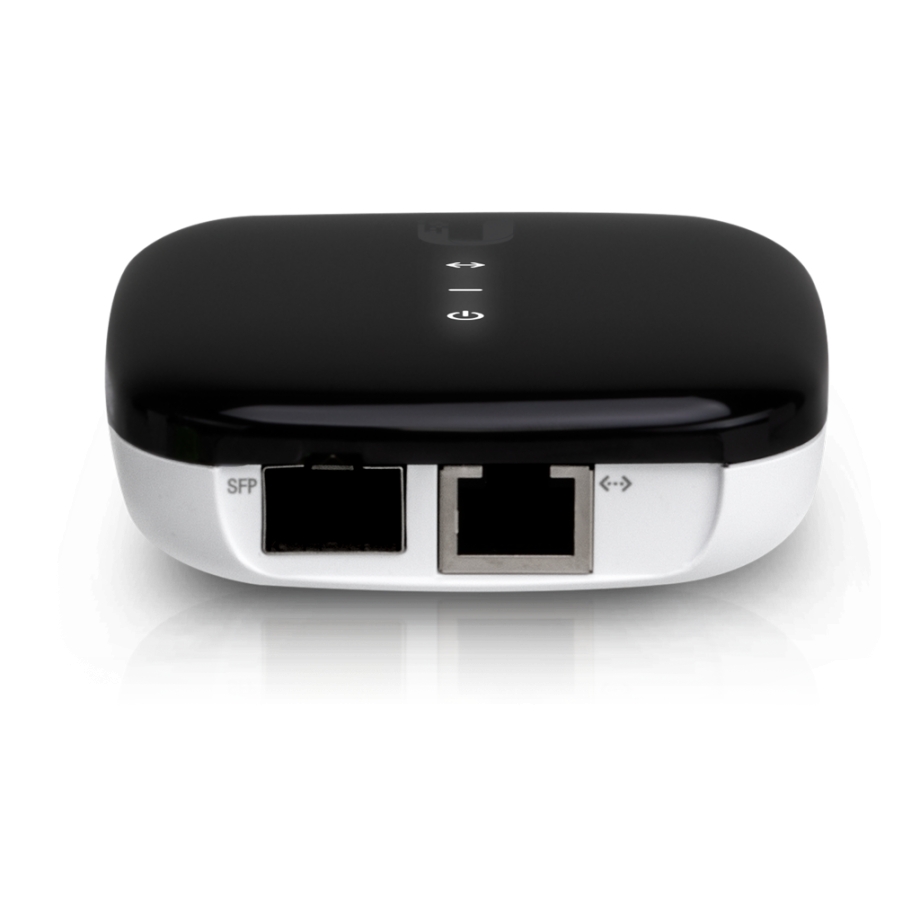

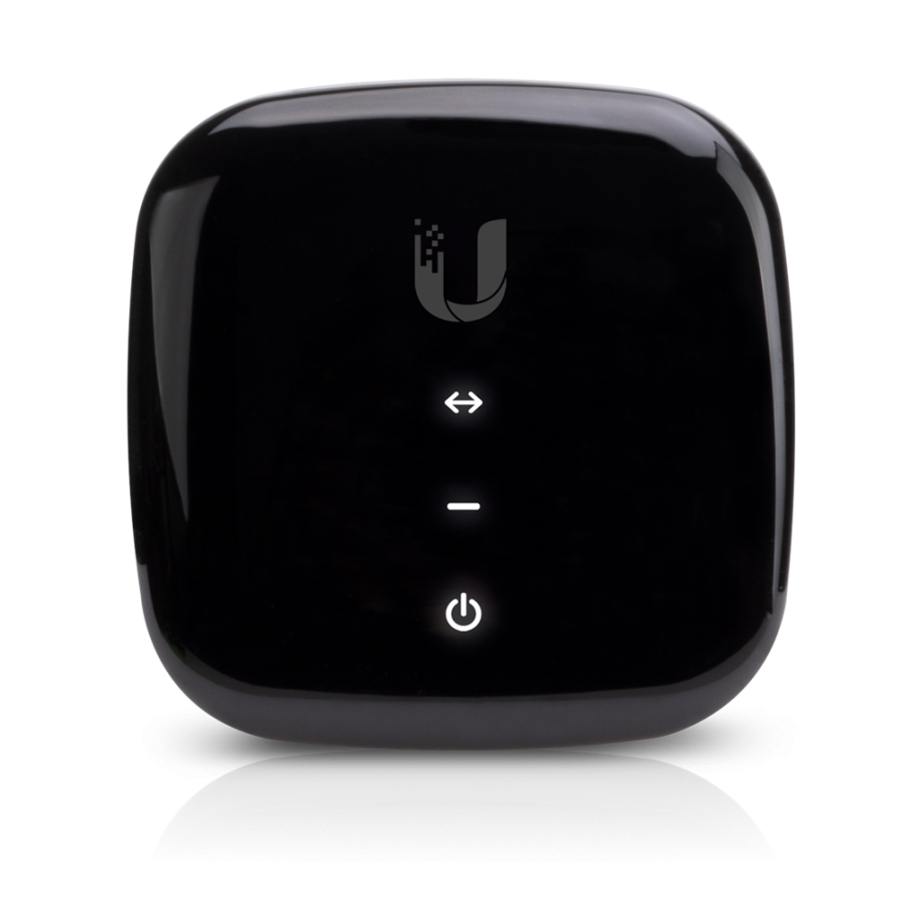

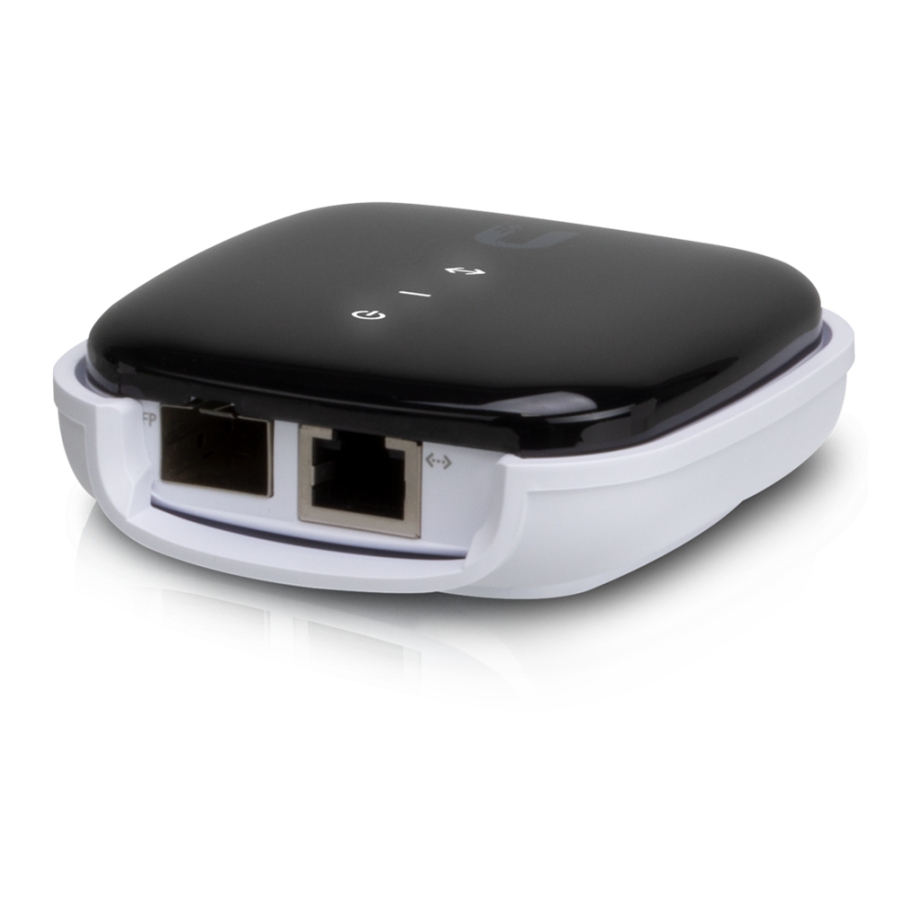

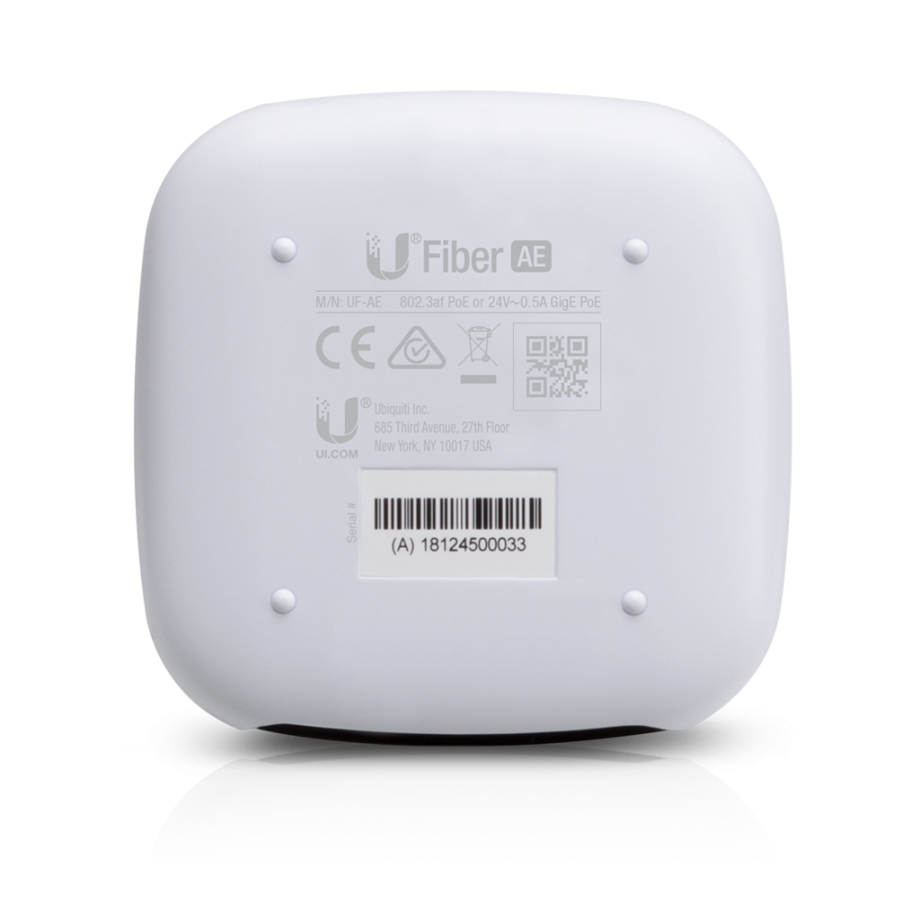

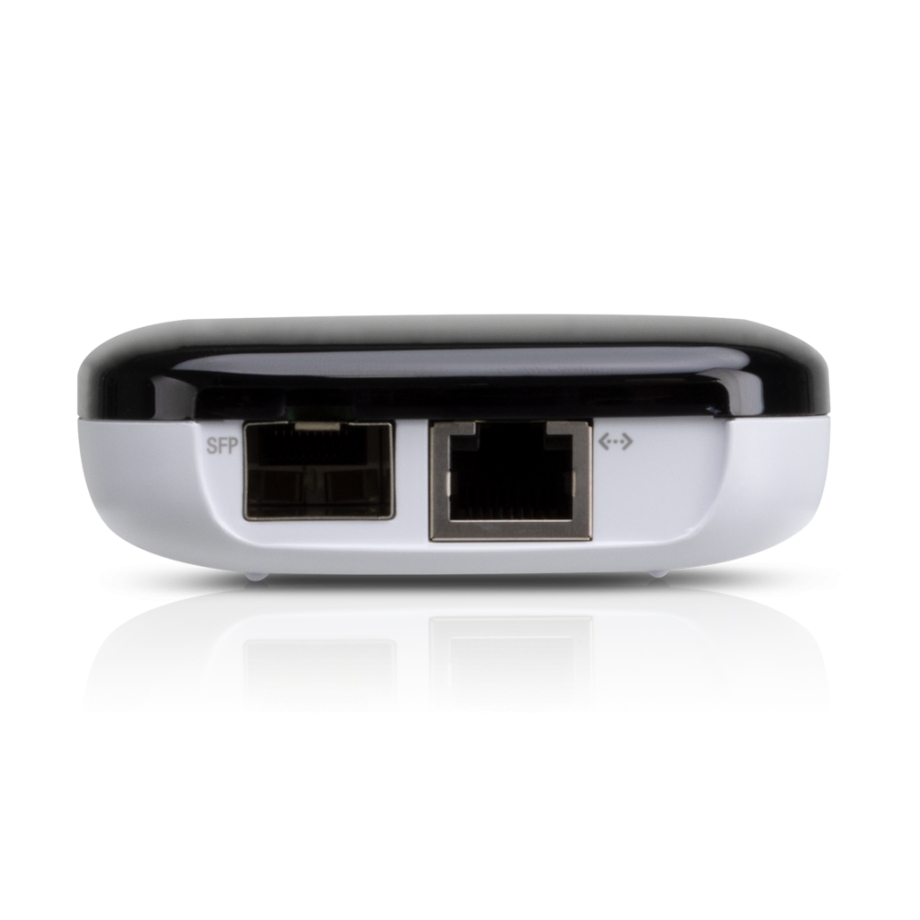

UFiber AE Converter is a fiber-to-copper media module that allows wireless equipment without SFP ports to support fiber uplinks up to 1 Gbps. UFiber Active Ethernet provides fiber connectivity to an RJ45 Ethernet device, which in turn provides 802.3af or 24V passive PoE to UFiber AE.
Encased in UV-stabilized polycarbonate (PC110U), the UF-AE device ensures durability and resilience against environmental factors, making it suitable for deployment in diverse networking environments. Engineered to meet stringent industry standards, the UF-AE device holds certifications including CE, FCC, and IC, guaranteeing compliance with regulatory requirements and ensuring reliability and performance consistency. Its wide ambient operating temperature range of -40 to 60°C (-40 to 140°F) and ambient operating humidity of 10 to 90% noncondensing further demonstrate its suitability for deployment in challenging environmental conditions.
UFiber Active Ethernet provides data over long distances at high speed using fiber. The UFiber ActiveEthernet is a 1Gbps fiber-to-copper media converter which allows ISPs to bring active fiber to customers’ premises and connect it to affordable SOHO network equipment lacking SFP ports. The versatile UFiber ActiveEthernet supports all UFiber SFP/SFP+ modules and connects any SFP or SFP+ module at the maximum speed of 1 Gbps.
UFiber Active Ethernet can be powered with 24V Passive PoE or 802.3af and is compatible with all UFiber SFP Modules (power supply and SFP modules not included). The hot-swappable SFP port supports a 1 Gbps connection (you can use an SFP+ module, however, the maximum speed is 1 Gbps). Use the included bracket to easily mount UFiber Active Ethernet on a wall.
מפרט טכני:
| Fiber Equipment | |
|---|---|
| Data Rate | 1 Gbps |
| Power | |
| Power Method | 24V Passive PoE, 802.3af PoE |
| Power Supply | External PoE Adapter |
| Supported Input Voltage | 16 – 57 V DC |
| Max Power Consumption | 1.5 W |
| Physical Parameters | |
| Color | Black |
| Material | Plastic |
| Operating Temperature | -40 °C to 60 °C |
| Environment | Indoor |
| Mounting Method | Wall Mount |
| Form Factor | Desktop |
| Package Contains | |
| Units | 1 pcs |
| External Power Supply | Not Included |
