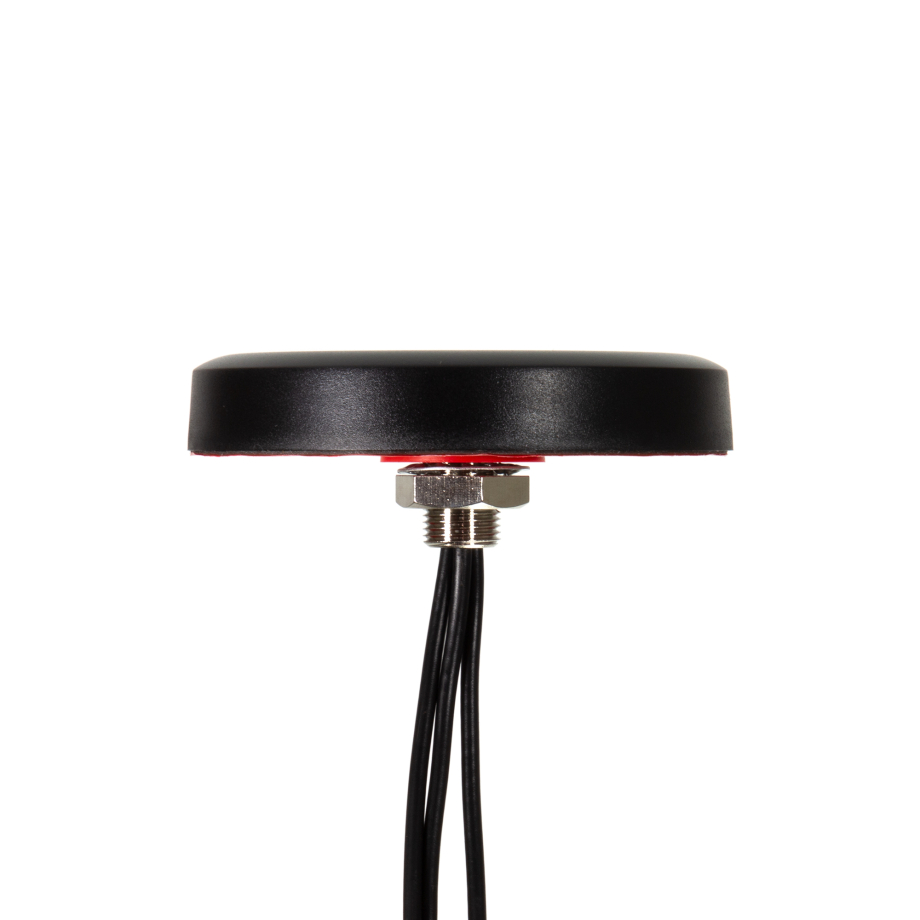

PR1KCS28 is a combined GNSS + LTE + Wi-Fi SISO antenna. The operating frequency range of the GNSS antenna is 698-960 / 1710-2690 MHz. The LTE antenna works in the frequency range 850 / 900 / 1800 / 1900 / 2170 MHz with 3.5 dBi gain, but the Wi-Fi antenna works in the frequency range 2350-2500 MHz with 2.5 dBi gain. The antenna is protected from dust and water according to the ingress protection rating IP65. PR1KCS28 is equipped with three high-frequency coaxial RG174 cables. Each cable is 3 m long. Mounting method: screw.
מפרט טכני:
| Mobile Network | |
|---|---|
| Mobile Network Generation | 4G (LTE) |
| Wireless Network | |
| Frequency | 2.4GHz |
| Antenna | |
| Antenna Design | Roof |
| Wireless Antenna Frequency Range & Gain | 2.350 – 2.500 (GHz) 2.5 (dBi) |
| Mobile Antenna Frequency Range & Gain | 0.850 – 2.170 (GHz) 3.5 (dBi) |
| Mobile Antenna Gain | 3.5 dBi |
| Beamwidth | 360 ° Vertical |
| GPS Antenna Frequency Range & Gain | 1575.42 MHz 2 dBic (Zenith) |
| Cable Length | 3 m |
| VSWR | < 1.5 |
| Impedance | 50 Ω |
| Connectors | |

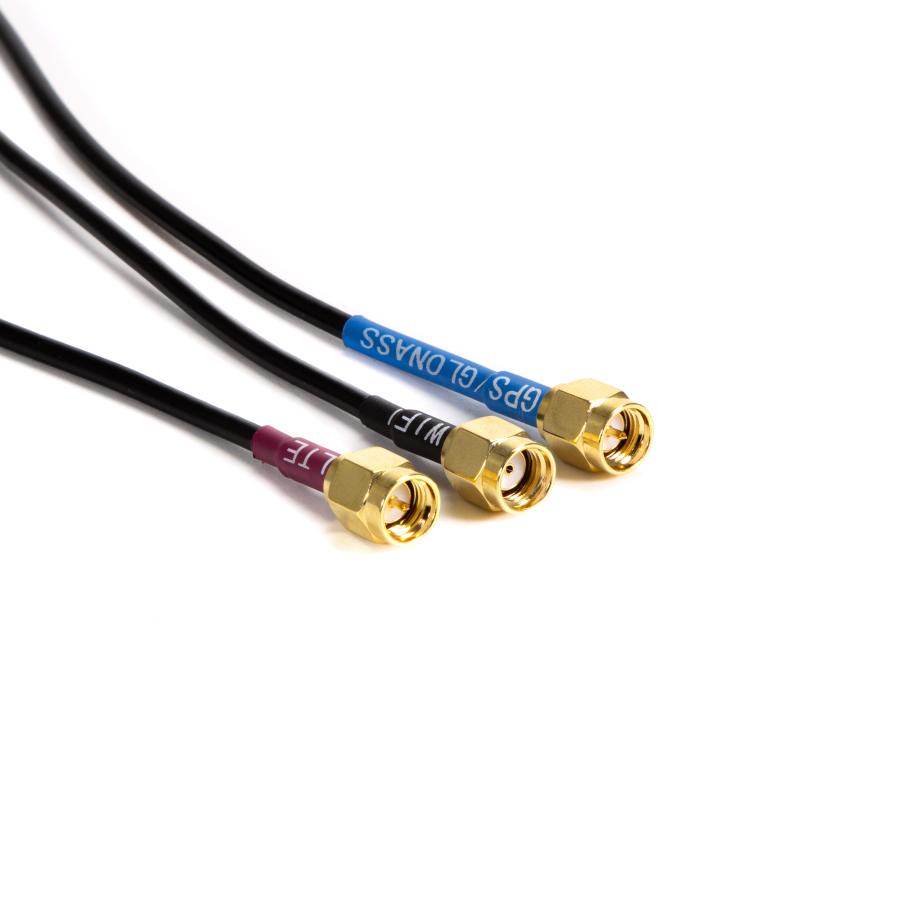

| RF Connectors | (2) SMA Male, (1) RP-SMA Male |
| Physical Parameters | |
| Color | Black |
| Material | ABS Plastic |
| Ingress Protection Code | IP67 |
| Dimensions | Ø85 x 15 mm |
| Weight | 0.25 kg |
| Environment | Outdoor |
| Mounting Method | Screw |
