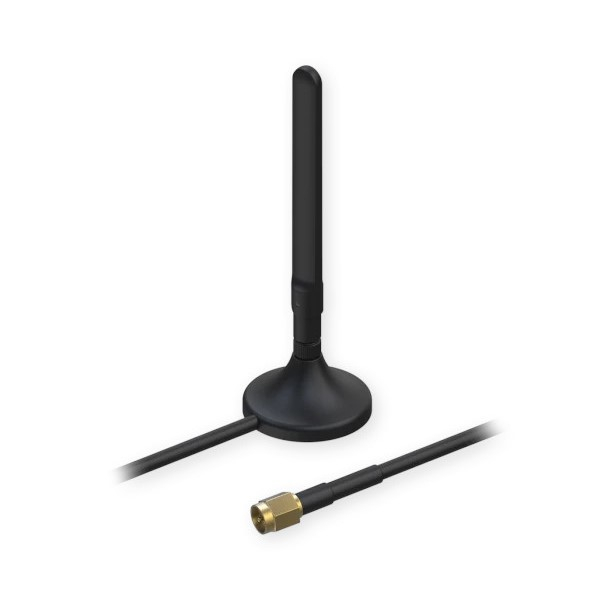

The Teltonika 5G Mobile Magnetic SMA Antenna is a high-performance, omnidirectional antenna designed for use with 5G mobile devices. It features a 3.6 dBi gain, providing strong signal reception even in areas with weak signal strength. This makes it a versatile option for use in a variety of applications, such as mobile broadband, IoT, and M2M communications.
The antenna is easy to install, thanks to its magnetic mounting base. You can attach it to any metallic surface. PR1KS536 also has a 3-meter cable that allows you to position it in the best location for optimal signal reception. The antenna is weatherproof, with an IP33 rating, which means that it can withstand dust and splashing water.
מפרט טכני:
| Mobile Network | |
|---|---|
| Mobile Network Generation | 5G (NR) |
| Antenna | |
| Antenna Design | Omni |
| Mobile Antenna Frequency Range & Gain | 0.617 – 0.960 (GHz) 3.6 (dBi), 1.40 – 2.69 (GHz) 3.6 (dBi), 3.30 – 5.90 (GHz) 3.6 (dBi) |
| Mobile Antenna Gain | 3.6 dBi, 3.6 dBi, 3.6 dBi |
| Polarization | Linear |
| Cable Length | 3 m |
| VSWR | < 3.5 |
| Impedance | 50 Ω |
| Connectors | |

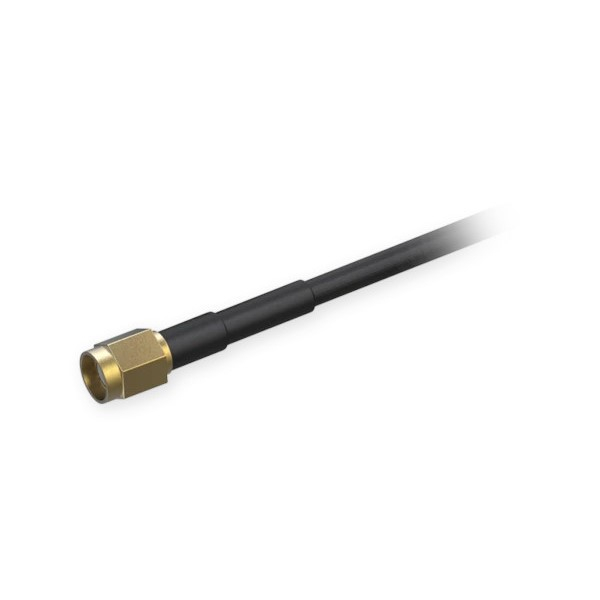

| RF Connectors | (1) SMA Male |
| Physical Parameters | |
| Ingress Protection Code | IP33 |
| Weight | 0.15 kg |
| Operating Temperature | -20 °C to 65 °C |
| Environment | Indoor |
| Mounting Method | Magnetic |
| Package Contains | |
| Units | 1 pcs |
