תיאור

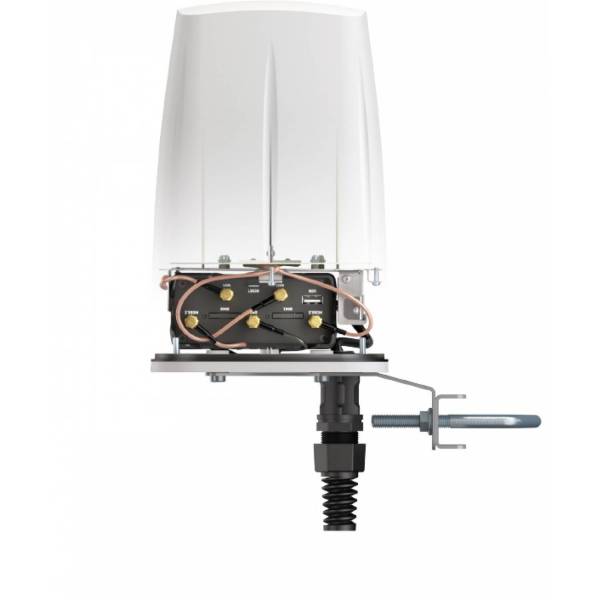

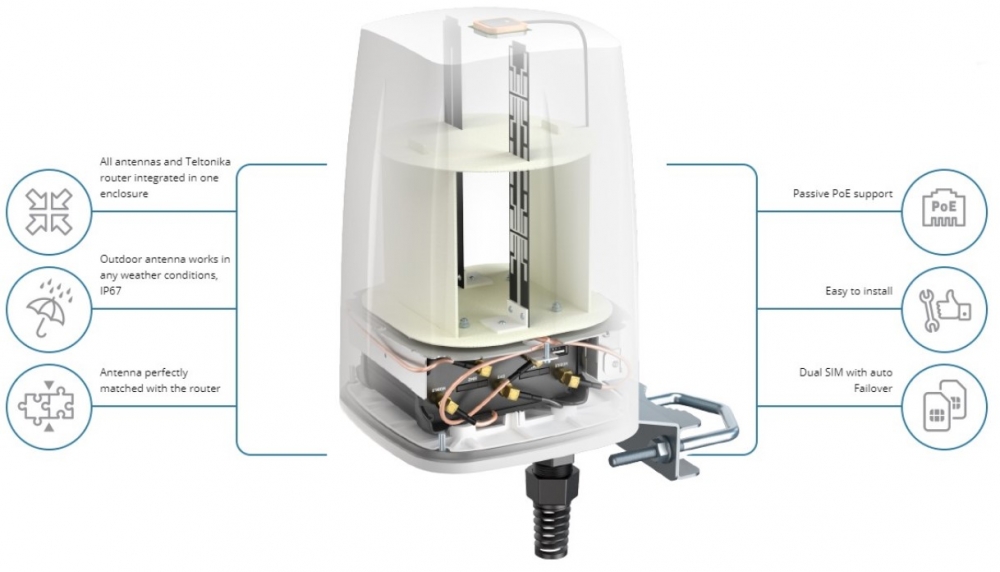

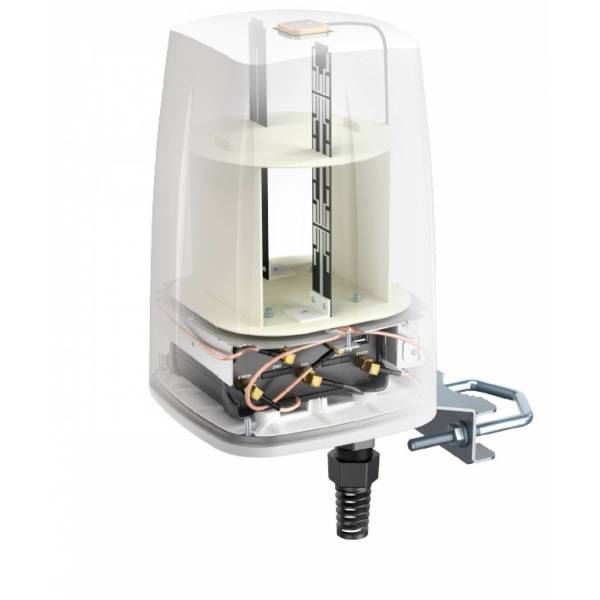

QuSpot omni LTE antenna for Teltonika RUT955, RUT956 or RUT906 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded omni Wi-Fi and GPS antenna. If you use RUT955, RUT956 or RUT906 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
מפרט טכני:
| Antenna | |
|---|---|
| Antenna Design | Dome |
| Wireless Antenna Frequency Range & Gain | 2.40 – 2.50 (GHz) 6 (dBi) |
| Mobile Antenna Frequency Range & Gain | 0.694 – 0.960 (GHz) 2 (dBi), 1.7 – 2.2 (GHz) 2 (dBi), 2.2 – 2.7 (GHz) 4 (dBi) |
| Mobile Antenna Gain | 2 dBi, 4 dBi |
| Beamwidth | 35 ° Vertical, 360 ° Horizontal |
| Polarization | Vertical |
| VSWR | < 2 |
| Impedance | 50 Ω |
| Physical Parameters | |
| Color | White |
| Material | Aluminium, ABS Plastic, Polytetrafluoroethylene |
| Ingress Protection Code | IP67 |
| Dimensions | 240 x 160 x 160 mm |
| Weight | 1.5 kg |
| Operating Temperature | -40 °C to 75 °C |
| Environment | Outdoor |
| Mounting Method | Pole Mount |
