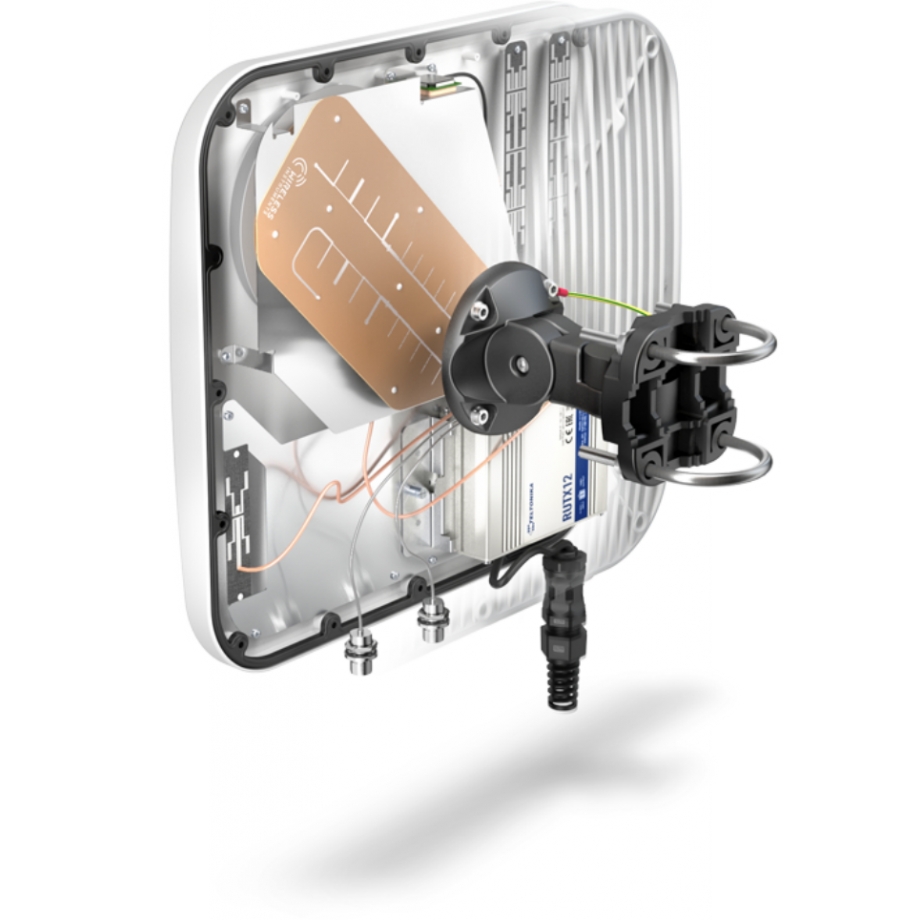

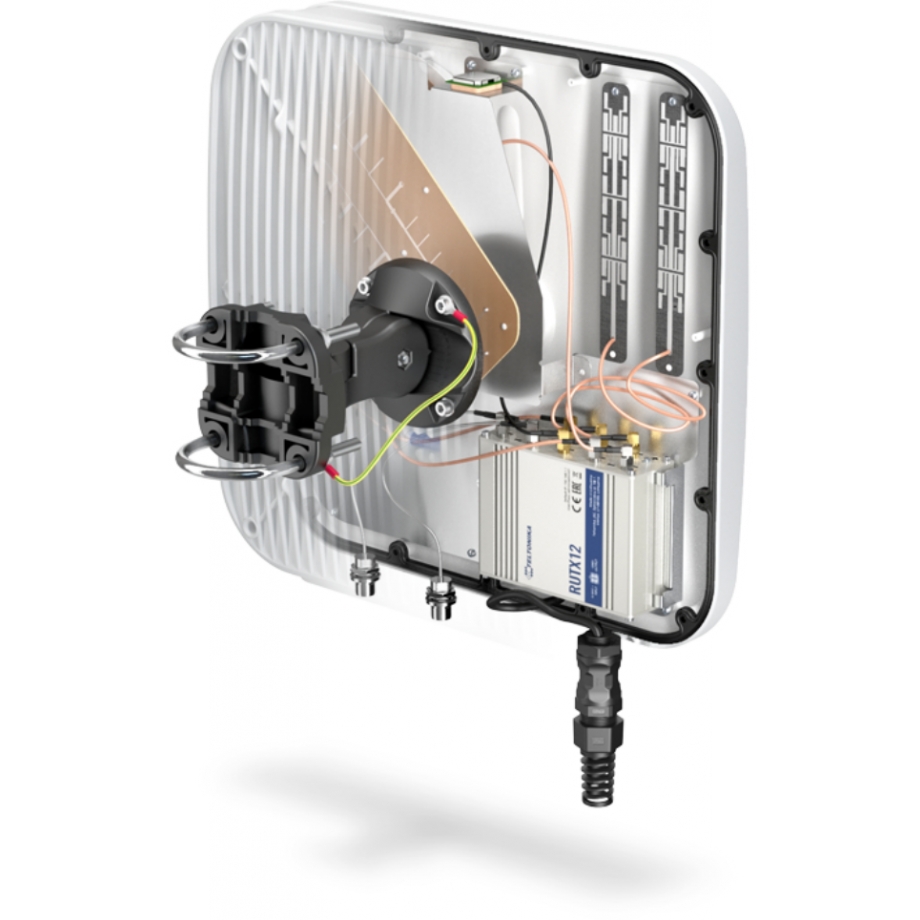

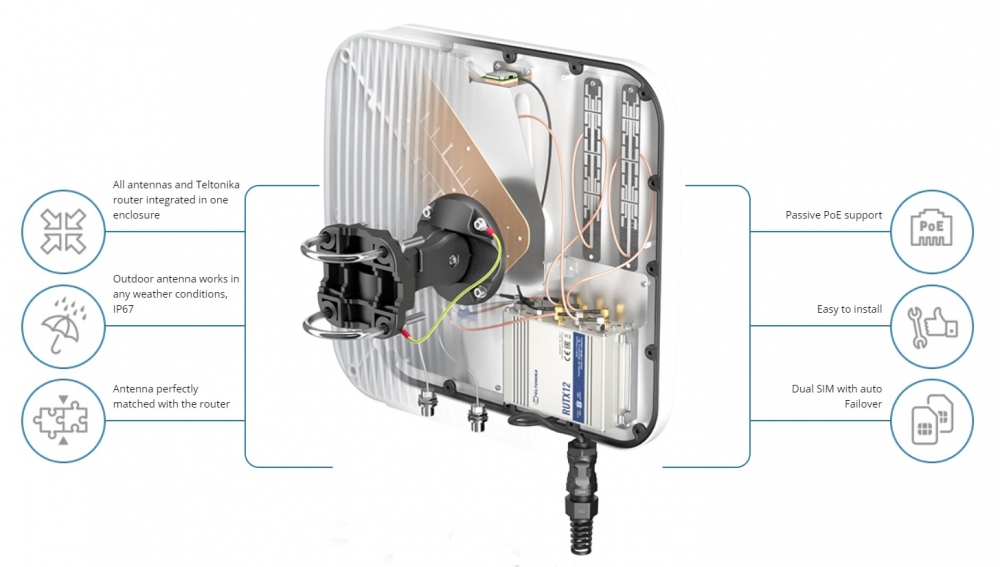

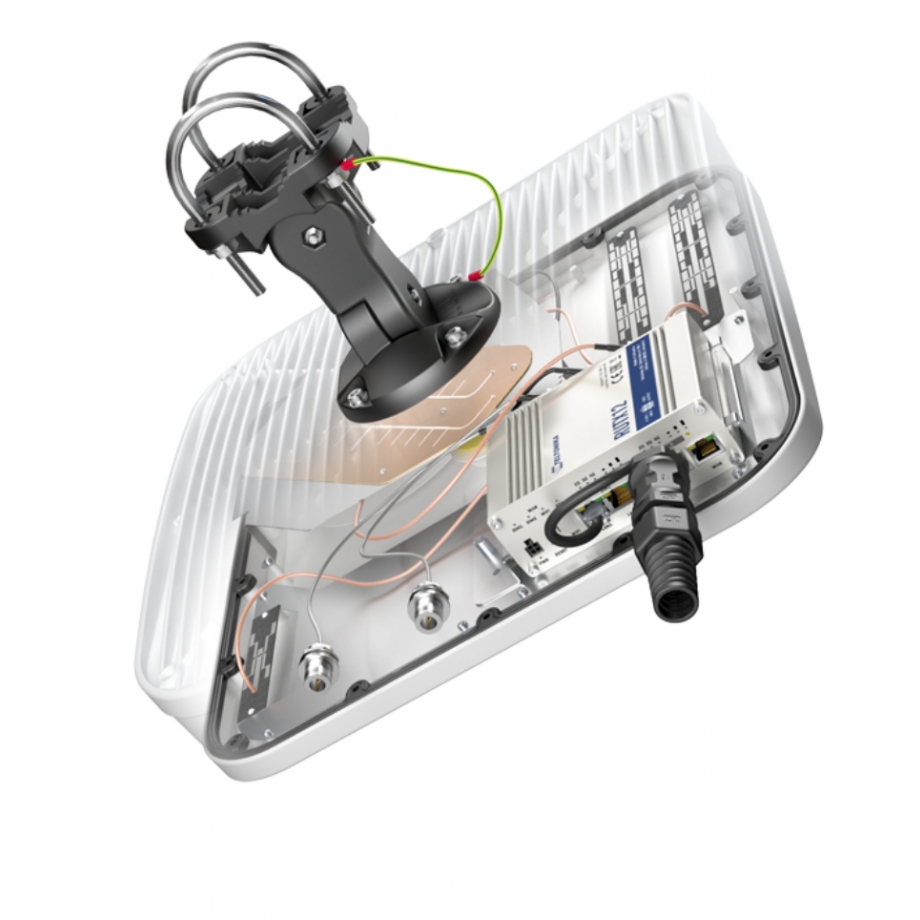

The QuMax XR2 is a bidirectional LTE eXtra Range antenna set (two separate antenna) to connect to two different LTE base stations (it can also be connected to one base station in order to obtain a greater share of the transfer from that base station). The main antenna additionally has built-in Wi-Fi dual-band, GPS and Bluetooth antennas, 2x N Female connectors for the second LTE antenna and a space to install the RUTX12 router inside the antenna enclosure. The second antenna is LTE Extra Range directional antenna only and is in smaller enclosure. The QuMax XR2 set is dedicated to long-range connections from the LTE base station, also to two different base stations, which gives optimal use of functions such as load balancing and carrier aggregation.
מפרט טכני:
| Antenna | |
|---|---|
| Antenna Design | Panel |
| Wireless Antenna Frequency Range & Gain | 2.40 – 2.50 (GHz) 6 (dBi), 4.70 – 6.00 (GHz) 4 (dBi) |
| Mobile Antenna Frequency Range & Gain | 0.694 – 0.960 (GHz) 7 (dBi), 1.7 – 2.2 (GHz) 7 (dBi), 2.2 – 2.7 (GHz) 7 (dBi) |
| Mobile Antenna Gain | 7 dBi |
| Beamwidth | 70 ° |
| Polarization | Dual Slant |
| Impedance | 50 Ω |
| Physical Parameters | |
| Color | White |
| Material | Aluminium, ABS Plastic, Fiberglass, Polytetrafluoroethylene |
| Ingress Protection Code | IP67 |
| Dimensions | 392 x 392 x 99 mm |
| Weight | 3.7 kg |
| Operating Temperature | -40 °C to 75 °C |
| Environment | Outdoor |
| Mounting Method | Pole Mount |
| Package Contains | |
| Units | 2 pcs |
