תיאור

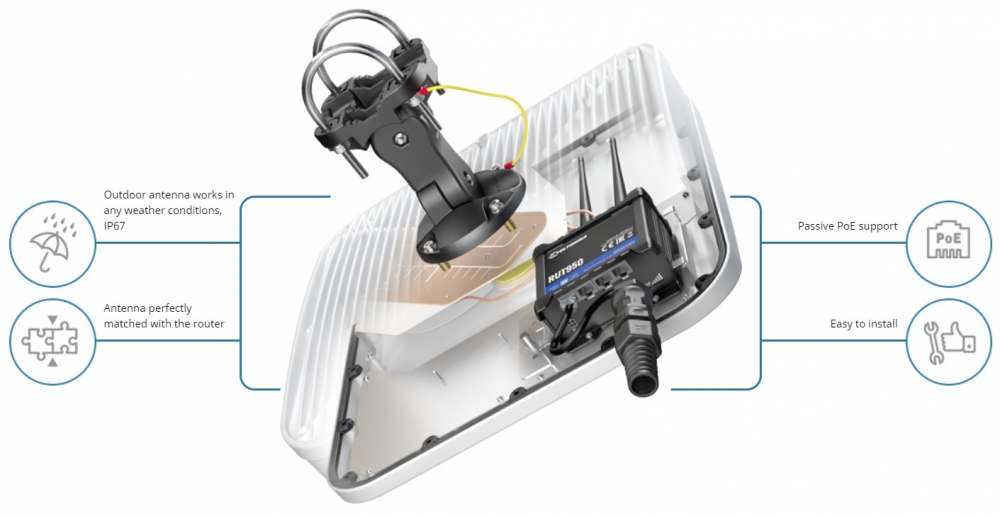

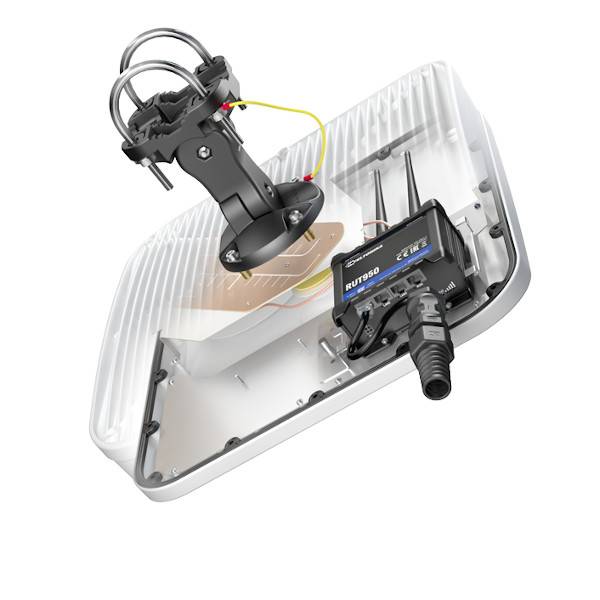

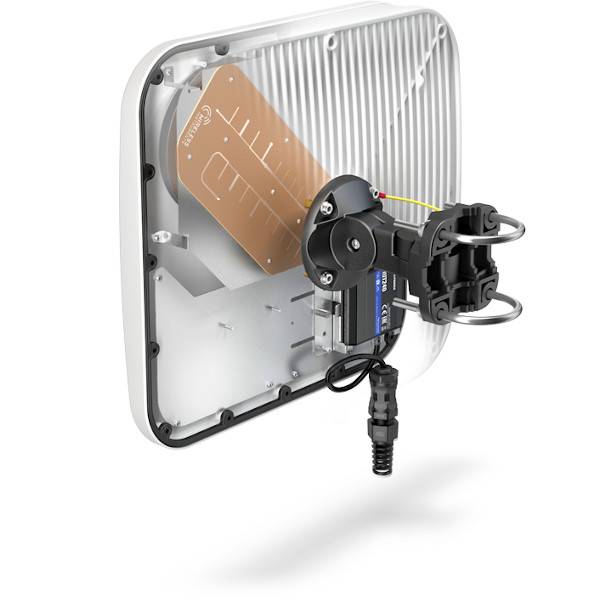

QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. This device is designed to have Teltonika RUT240/950/955/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure. QuMax XR High Band version offer gain up to 12 dBi in LTE bands: 7, 15, 16, 30, 38, 40, 41, 53, 69 and support many other LTE bands (details in specification table).
מפרט טכני:
| Antenna | |
|---|---|
| Antenna Design | Panel |
| Mobile Antenna Frequency Range & Gain | 0.694 – 0.694 (GHz) 6 (dBi), 2.3 – 2.7 (GHz) 13 (dBi) |
| Mobile Antenna Gain | 6 dBi, 13 dBi |
| Polarization | Dual Slant |
| VSWR | < 2 |
| Impedance | 50 Ω |
| Physical Parameters | |
| Color | White |
| Material | Aluminium, ABS Plastic, Fiberglass, Polytetrafluoroethylene |
| Ingress Protection Code | IP67 |
| Dimensions | 392 x 392 x 99 mm |
| Weight | 3.72 kg |
| Operating Temperature | -40 °C to 75 °C |
| Environment | Outdoor |
| Mounting Method | Pole Mount |
