PCIe 5-Speed Network Card

כרטיס הרחבה PCIe במהירות Multi-Gigabit עם תמיכה בחמש מהירויות שונות עד 10Gbps,
פועל על ממשק PCIe x4 ומבוסס על בקר TN4010 עם משדר Marvell מתקדם, מאפשר חיבור
יציב באמצעות כבלי CAT-6a עד 100 מטר ותומך גם בכבלי Cat-5e ו-Cat-6, תואם לאחור
לרשתות במהירויות נמוכות יותר, כולל תמיכה ב-EEE, Jumbo Frames וניהול עומסים
לשיפור ביצועים והפחתת שימוש במעבד.

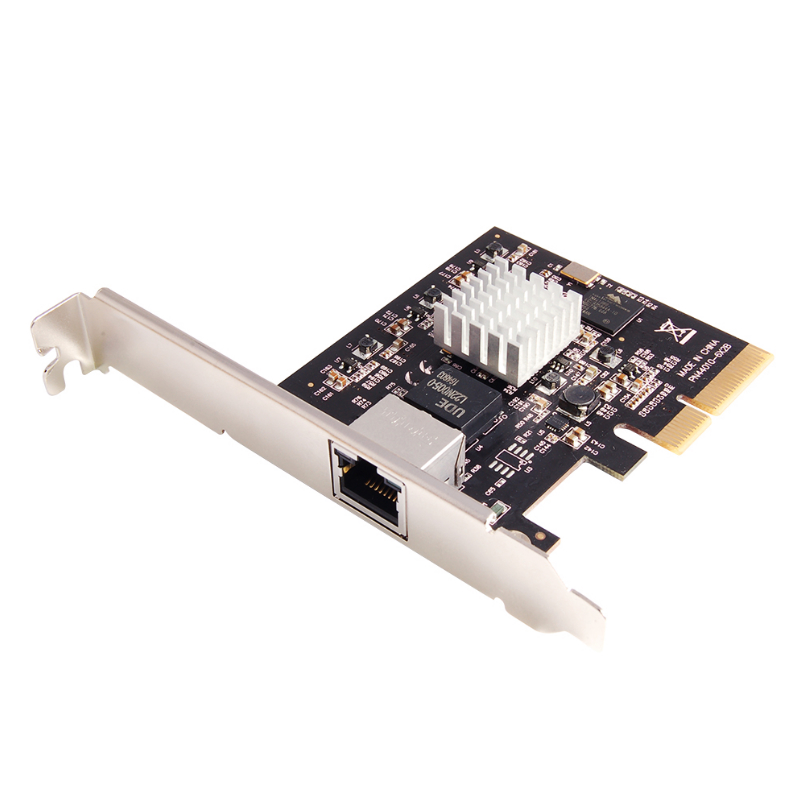

PCIe 10G 5-Speed Multi-Gigabit Network Card Description:

This card is a Multi-Gigabit network adapter that runs on a high speed PCIe x4 host but interface.

This card hosts the Tehuti new 3rd generation TN4010 controller, and optimized 10 Gigabit Ethernet
MAC designed for low-power, low-cost, single-port connectivity required by Application Servers and
Workstations. The TN4010 MAC is paired with Marvell Alaska 88X3310P transceiver, a low-power,
high-performance 10 Gigabit Ethernet PHY, to enable five-speed connectivity (10GBase-T, 5GBase-T
2.5GBase-T 1000Base-T, and 100Base-TX) over low-cost  standard CAT-6a Ethernet cabling, up to
100m (Cat-5e and CAT-6 are supported compliant to Link Segment specifications).

This combination creates a new gateway to cost-conscious consumer applications, as well as to
intensive data environments.

Features

• Supports 10G/5G/2.5G/1G/100M
• Runs up to 10G at 100m Cat 6A cable and 5G at 100m Cat 5e/Cat 6 cable
• Backward compatibility with 1000Base-T, 100Base-T Networks
• PCI Express Gen-2 x4 Host Bus interface
• EEE (Energy Efficient Ethernet)
• 9K Jumbo Frames
• IP, TCP, UDP checksum offloading
• IEEE 802.1Q Tagged VLAN
• Virtual NIC support
• Reduced CPU utilization and improved throughput

Requirements Hardware

• The following system specs are recommended minimum
• PCIe slot: Available 4-Lanes PCI-Express slot gen 2.0 or later
• Processor: Quad Core 3.0GHz or higher
• RAM: 4GB memory or higher

Software

• Operating systems supported are (both 32 and 64 bits)
• Windows 7
• Windows Server 2008 R2
• Windows Server 2012
• Windows 8.1
• Windows Server 2012 R2
• Windows 10
• Linux 2.6.24 or later
• VMware ESXi 5.x/6.0
• Mac OS X 10.12.6 or later

Package Contents

• 1 x PCIe 10G 5-Speed Multi-Gigabit Network Card
• 1 x Driver CD
• 1 x User Manual
