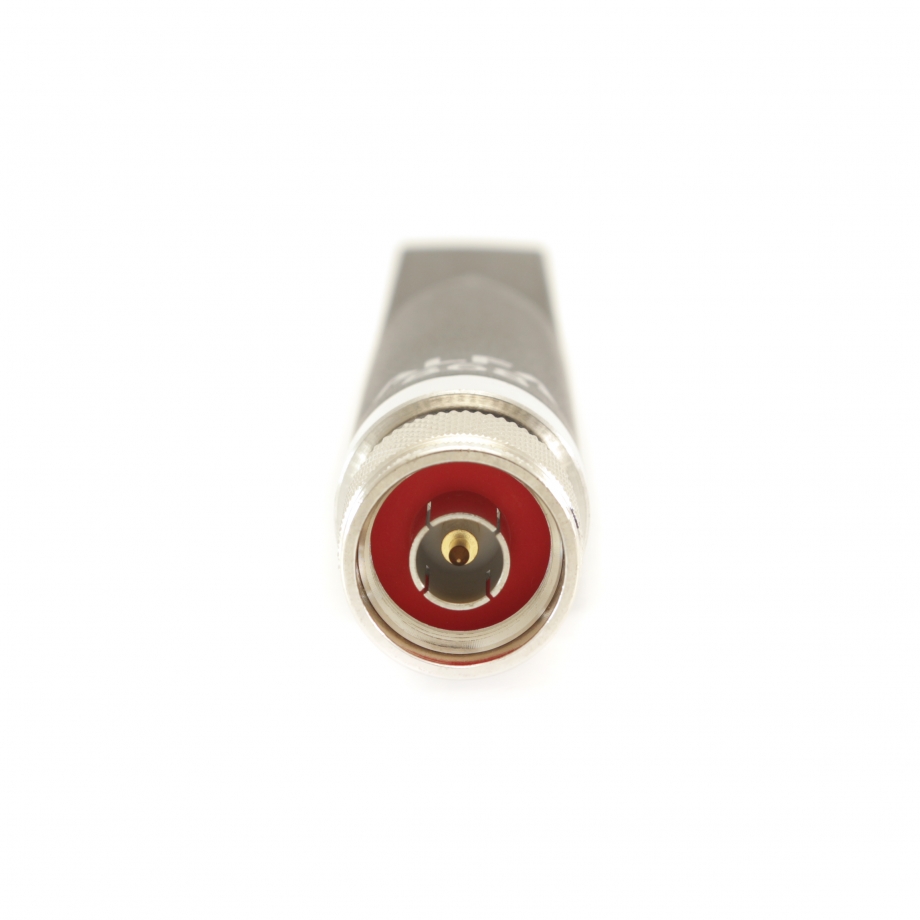

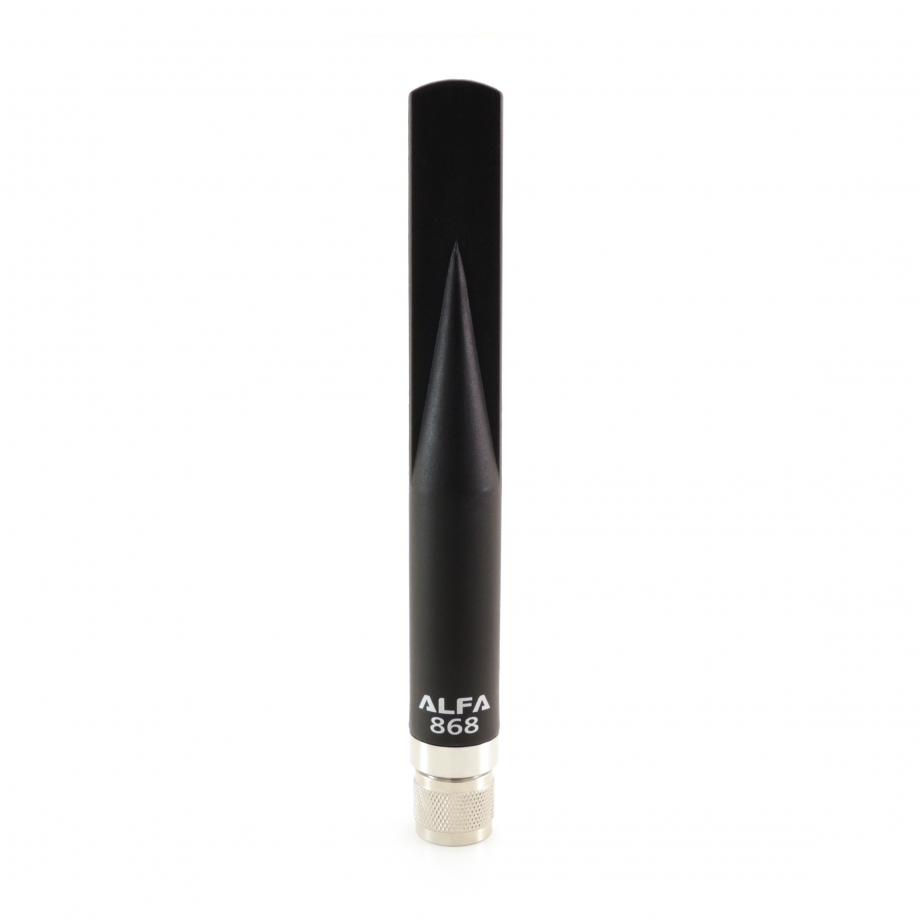

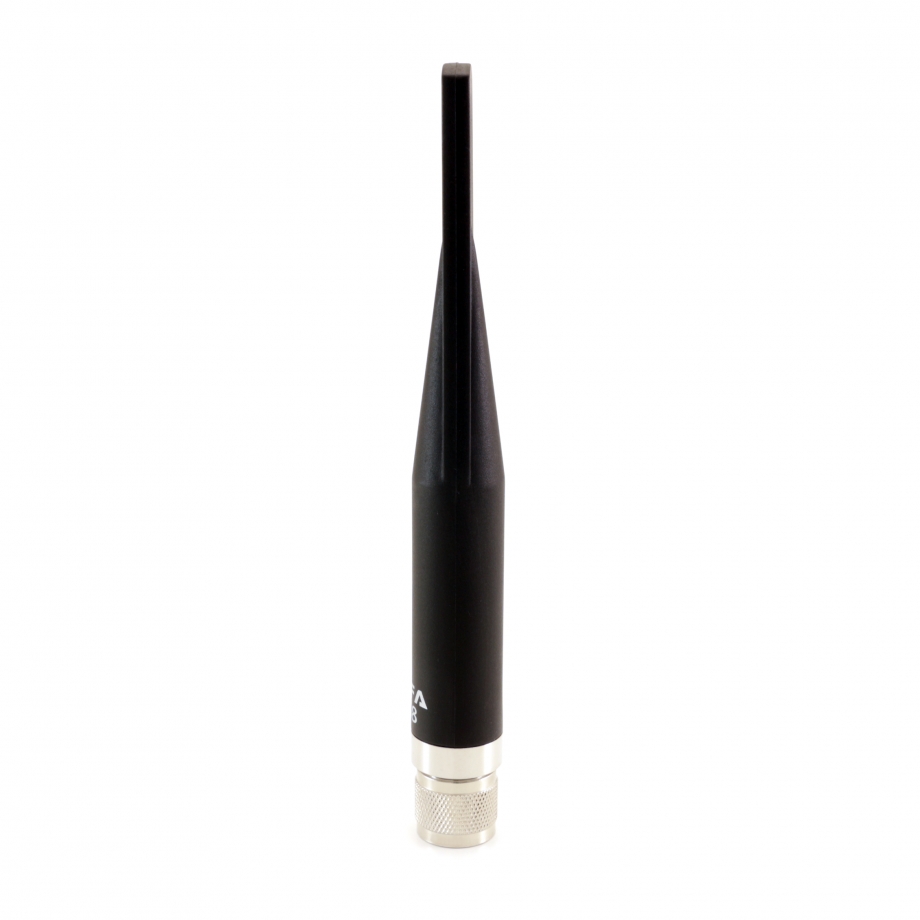

AOA-868-5ACM is an omnidirectional outdoor antenna with 5dBi gain, that operates in 863-870 MHz frequency range and therefore covers 868 MHz LoRa/HaLow/Sigfox frequency. The antenna is equipped with an N Male connector. The AOA-868-5ACM housing is made of durable weatherproof materials and can be used in difficult environmental conditions. The length of this compact antenna is 18 cm and the diameter is 22 mm.
מפרט טכני
| Wireless Network | |
|---|---|
| Standards | 802.11ah |
| Antenna | |
| Antenna Design | Omni |
| Wireless Antenna Frequency Range & Gain | 0.863 – 0.870 (GHz) 5 (dBi) |
| Beamwidth | 360 ° |
| VSWR | < 2.0 |
| Impedance | 50 Ω |
| Connectors | |
| RF Connectors | (1) N Male |
| Physical Parameters | |
| Dimensions | Ø22 x 180 mm |
| Weight | 0.082 kg |
| Operating Temperature | -40 °C to 85 °C |
AOA-868-5ACM
