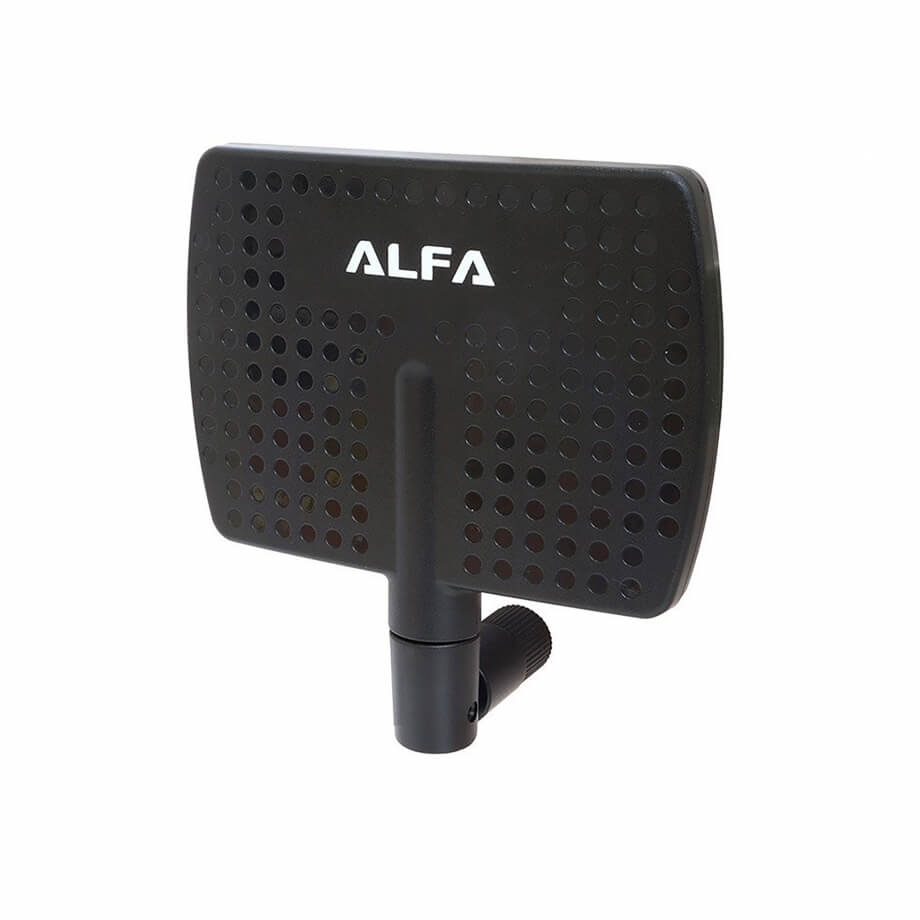

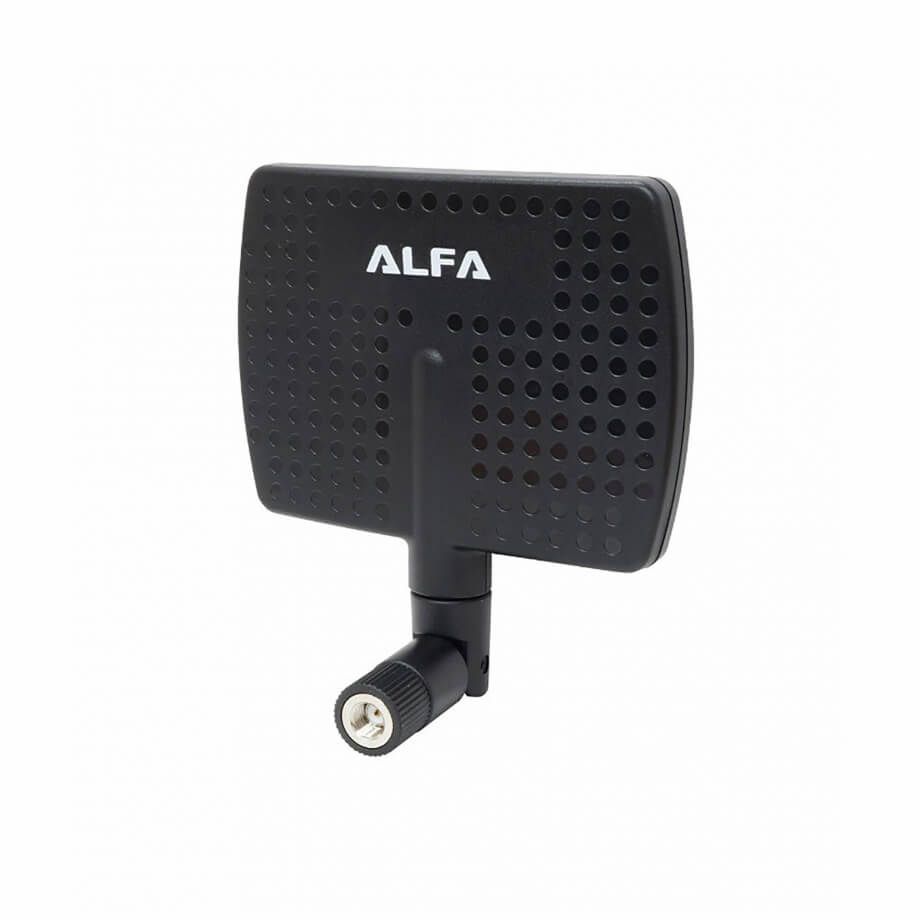

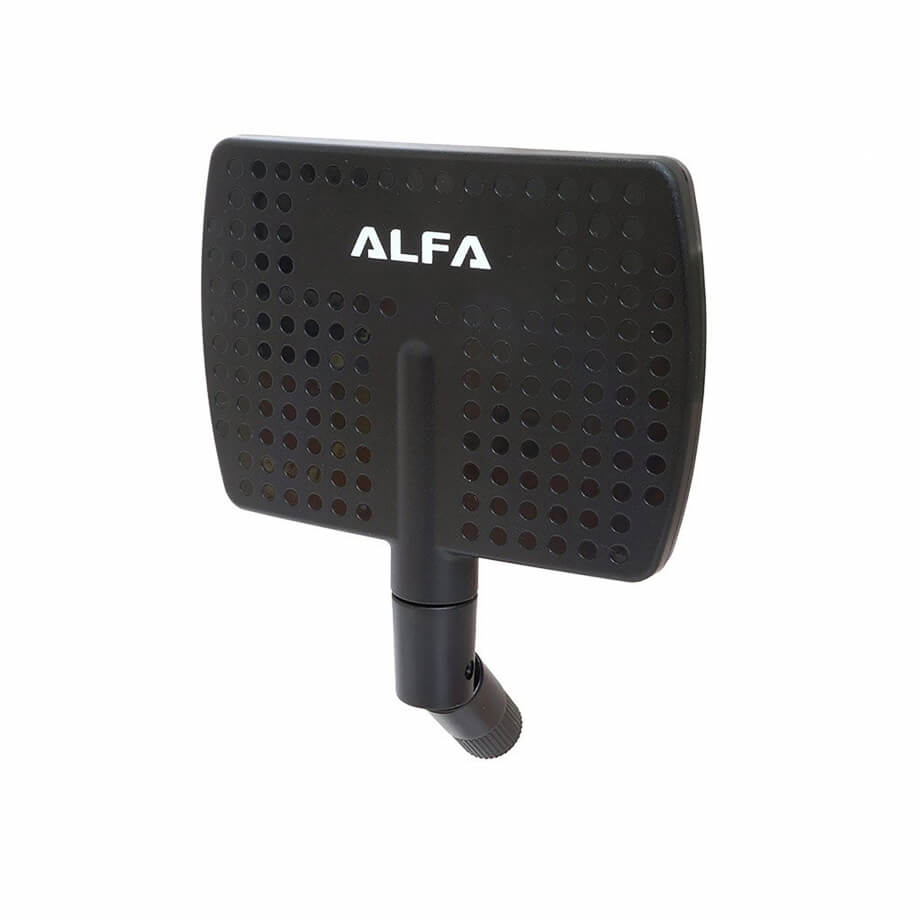

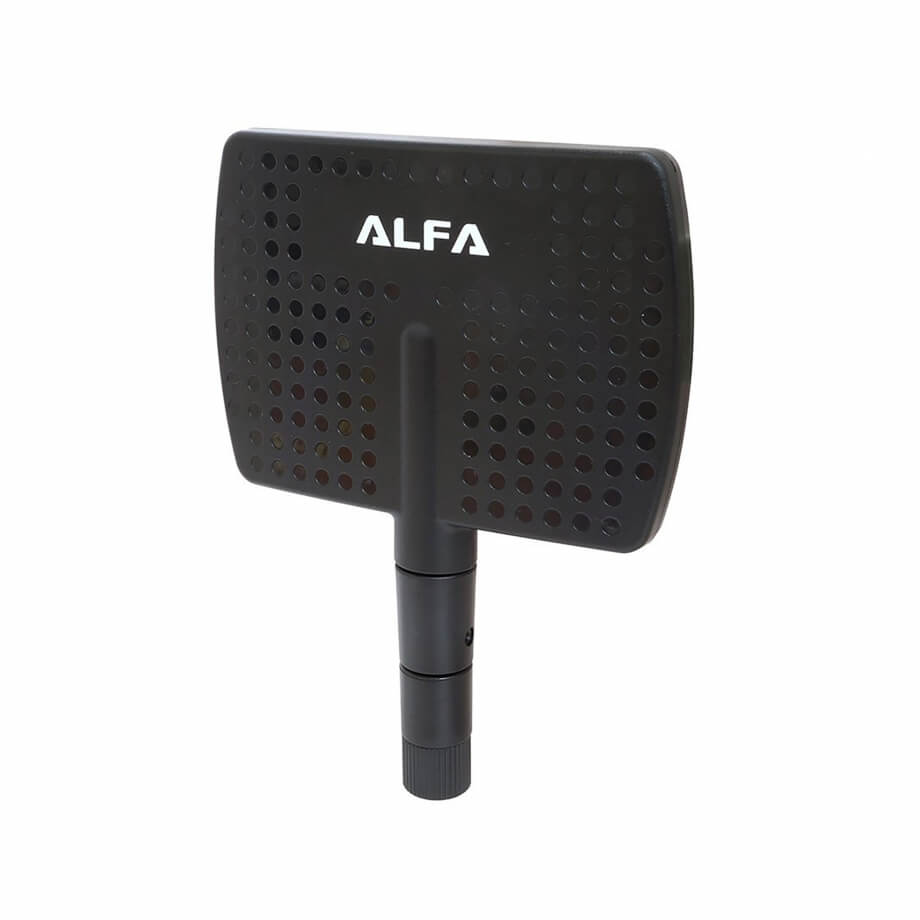

The APA-M04 is a directional panel antenna from ALFA Network for indoor use. It operates in the 2400~2500 MHz SISO 1×1 frequency range and has a 7 dBi gain. Equipped with an antenna connector RP-SMA Male. Antenna improves signal quality and increases the range of the access point or router indoors.
מפרט טכני
| Wireless Network | |
|---|---|
| Frequency | 2.4GHz |
| Antenna | |
| Antenna Design | Panel |
| Wireless Antenna Frequency Range & Gain | 2.4 – 2.5 (GHz) 7 (dBi) |
| Polarization | Linear |
| Impedance | 50 Ω |
| Connectors | |
| RF Connectors | (1) RP-SMA Male |
| Physical Parameters | |
| Color | Black |
| Material | Plastic |
| Dimensions | 173 x 145 x 61 mm |
| Weight | 0.045 kg |
| Operating Temperature | -10 °C to 55 °C |
| Environment | Indoor |
APA-M04
