תיאור

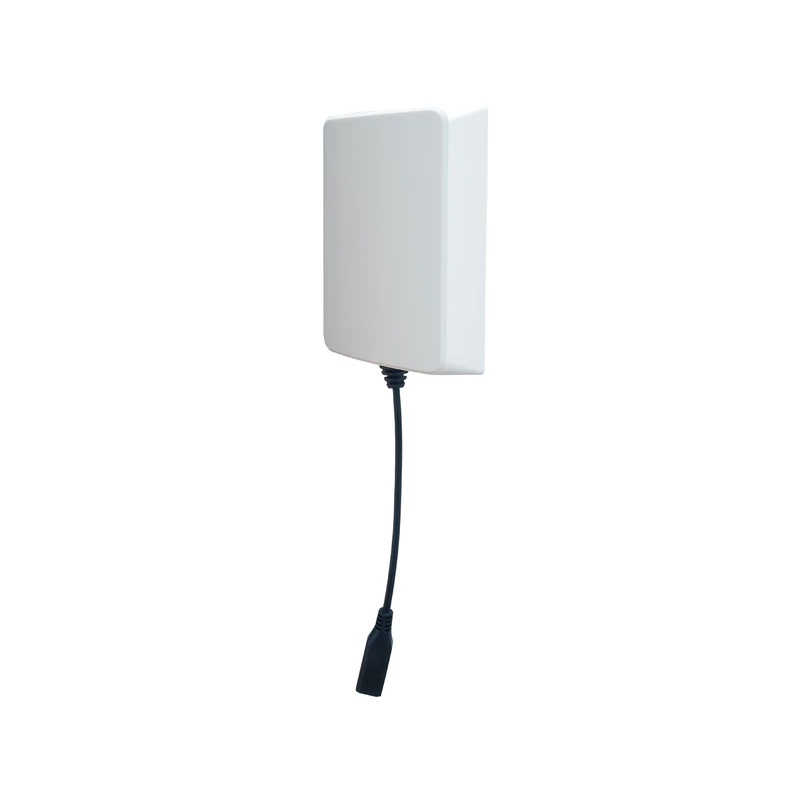

AC600U supports Wi-Fi 5 (IEEE 802.11ac) standard in a single antenna configuration (1T1R) and includes built-in high-gain (8 dBi) directional antenna. The embedded module is based on Realtek™ RTL8811AU chipset, backward compatible with IEEE 802.11a/b/g/n/ac and support for 2.4 or 5 GHz band.

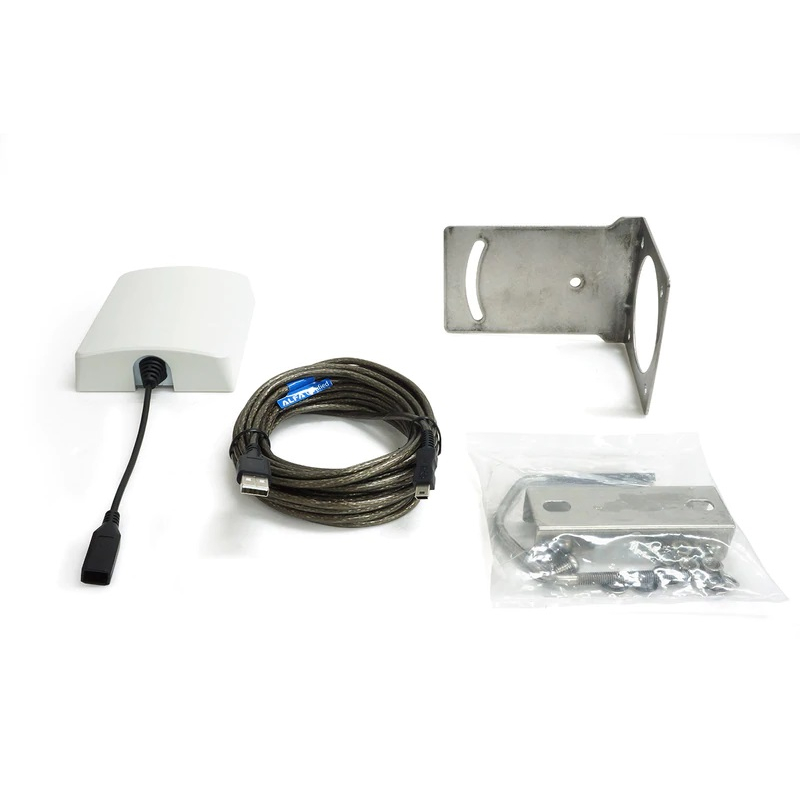

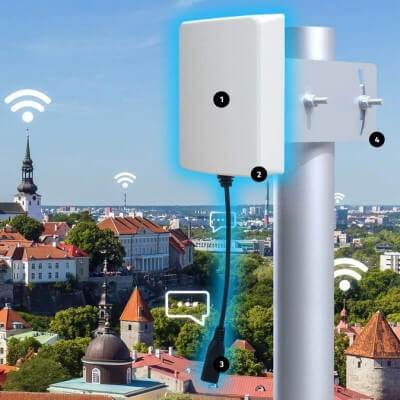

The kit includes:
- (1) Embedded 802.11ac dual-band USB module (Realtek™ RTL8811AU chipset)
- (2) Built-in, high-gain (8 dBi) directional 2 panel antenna
- (3) Detachable cable with mini USB connector (5-meters shielded USB cable is included in bundle)

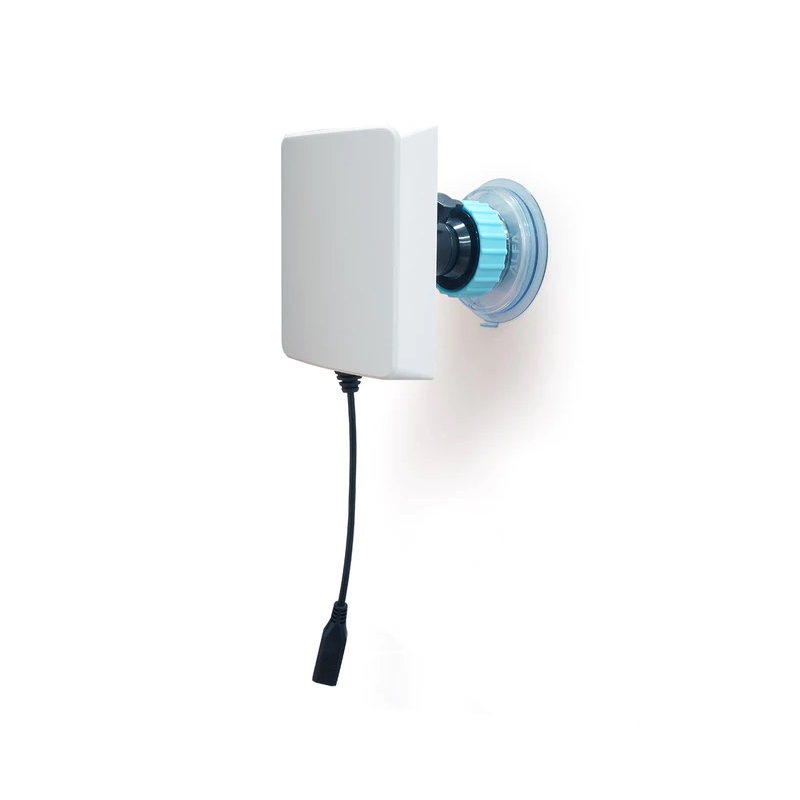

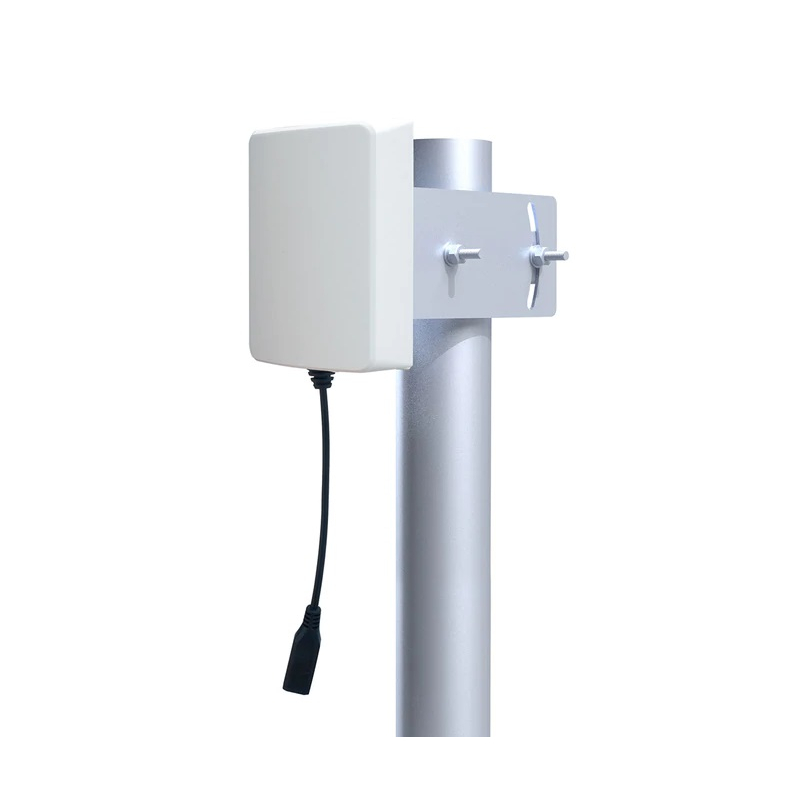

- (4) Universal pole mounting kit included in bundle (the optional suction cup mount sold separately)
מפרט טכני
| Wireless Network | |
|---|---|
| Generation | WiFi 5 |
| Standards | 802.11n/ac |
| Frequency | 2.4GHz, 5GHz |
| 2.4GHz Radio Rate | 150 Mbps |
| 5GHz Radio Rate | 433 Mbps |
| Antenna | |
| Antenna Design | Panel |
| Wireless Antenna Frequency Range & Gain | 2.4 – 2.5 (GHz) 8 (dBi) |
| Interfaces | |
| USB Ports | (1) USB-A 2.0 |
| System Specification | |
| Chipset | Realtek™ RTL8811AU |
| Physical Parameters | |
| Color | White |
| Dimensions | 95 × 117 × 31 mm |
| Environment | Outdoor |
AC600U
