This kit allows you to boost and share a weak 4G data signal from a mobile carrier.
Plug in Laptop/ Computer USB port and connect to 4G/LTE tower
4G Mobile Internet Sharing via R36AH (Ideal solution for home, RV and boat for multiple-user Internet access)
מפרט טכני:
| Mobile Network | |
|---|---|
| Mobile Network Generation | 2G (GSM), 3G (UMTS), 4G (LTE) |
| LTE Category | Cat4 – 150Mbps/50Mbps |
| FDD LTE Frequency Bands | 1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz) |
| TDD LTE Frequency Bands | 38 (2600MHz), 40 (2300MHz), 41 (2500MHz) |
| SIM Card Slot | Mini-SIM |
| Wireless Network | |
| Generation | WiFi 4 |
| Standards | 802.11n |
| Frequency | 2.4GHz |
| 2.4GHz Radio Rate | 300 Mbps |
| Antenna | |
| Antenna Design | Omni |
| Wireless Antenna Frequency Range & Gain | 2.142 – 2.472 (GHz) 5 (dBi) |
| Mobile Antenna Frequency Range & Gain | 0.698 – 0.960 (GHz) 1.5 (dBi), 1.710 – 2.170 (GHz) 0.9 (dBi), 2.300 – 2.700 (GHz) 0.35 (dBi) |
| Mobile Antenna Gain | 1.5 dBi, 0.9 dBi, 0.35 dBi |
| Beamwidth | 360 ° |
| Polarization | Vertical |
| Cable Length | 7.5 m |
| VSWR | < 3.0 |
| Impedance | 50 Ω |
| Interfaces | |
| RJ45 Ports | (2) 100 Mbps |
| USB Ports | (1) Mini USB 2.0 |
| System Specification | |
| RAM | 128 MB |
| Storage Memory | 16 MB |
| Power | |
| Power Method | AC/DC Adapter, 24V Passive PoE |
| Power Supply | External AC/DC Adapter |
| Supported Input Voltage | 12 – 24 V DC |
| Charging Method | Cigarette Lighter Socket |
| Physical Parameters | |
| Operating Temperature | -20 °C to 40 °C |
| Environment | Outdoor |

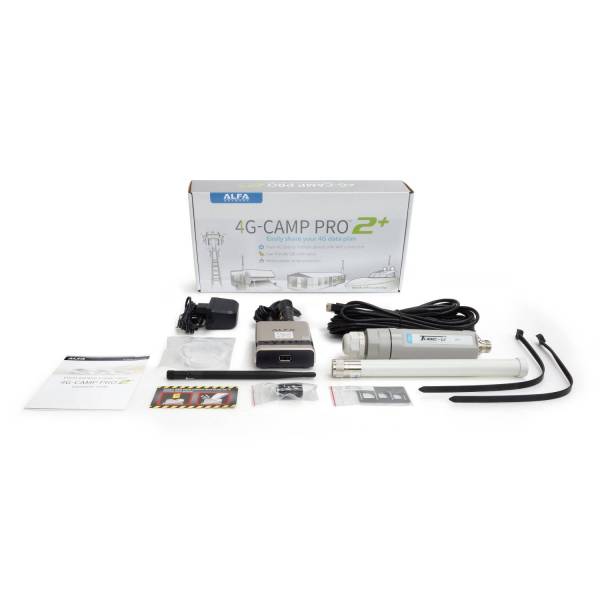

| Package Contains | |
| External Power Supply | Included |
