תיאור
ALFA AOA-2458-79AM is a new high quality, low cost TAA compliant dual band 9 dBi gain omni-directional 2.4/5 GHz Wi-Fi antenna with N-male connector. The gain is 9 dBi for 5 GHz and 7 dBi for 2.4 GHz. This has weather proof casing. This is a great antenna for boat or RV use.
מפרט טכני
| Wireless Network | |
|---|---|
| Frequency | 2.4GHz, 5GHz |
| Antenna | |
| Antenna Design | Omni |

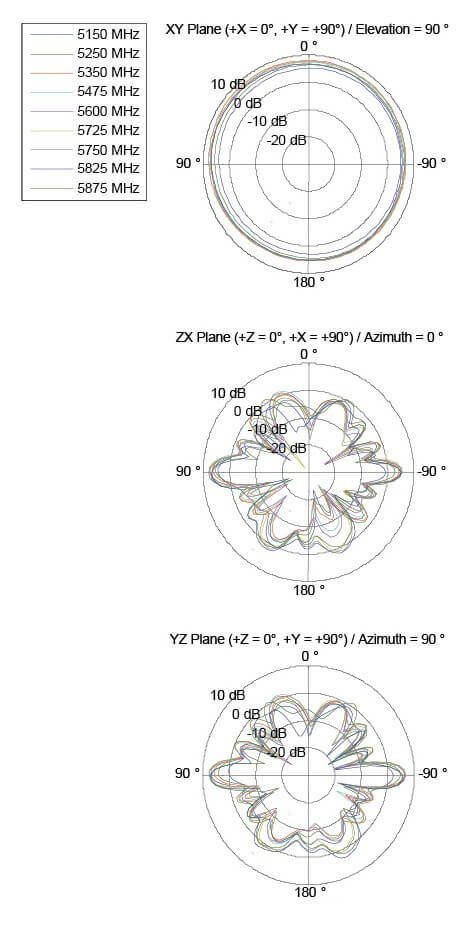

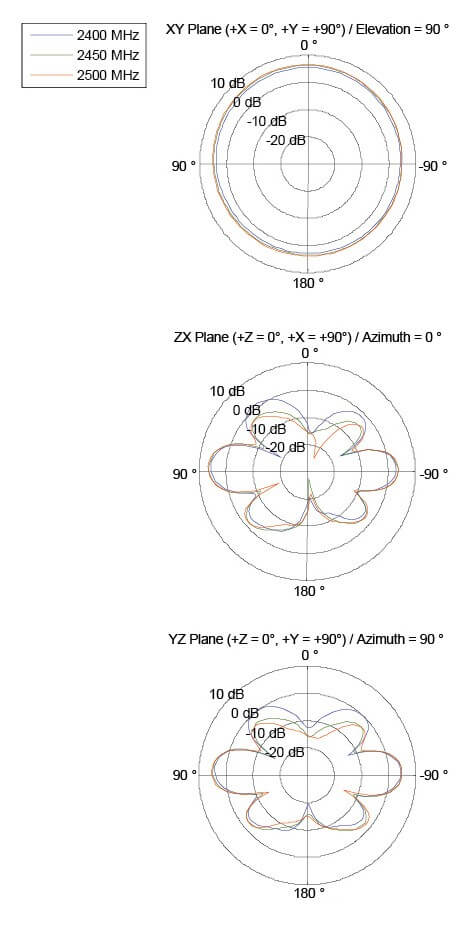

| Wireless Antenna Frequency Range & Gain | 2.4 – 2.5 (GHz) 7 (dBi), 5.15 – 5.875 (GHz) 9 (dBi) |
| Beamwidth | 360 ° Vertical |
| Polarization | Linear, Vertical |

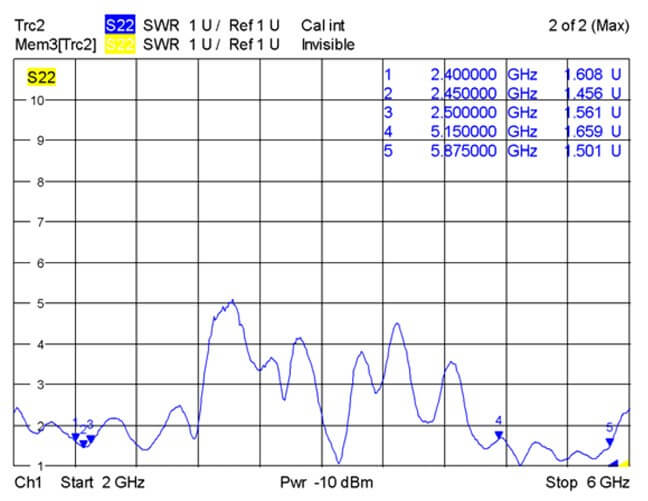

| VSWR | < 2.0 |
| Impedance | 50 Ω |
| Connectors | |

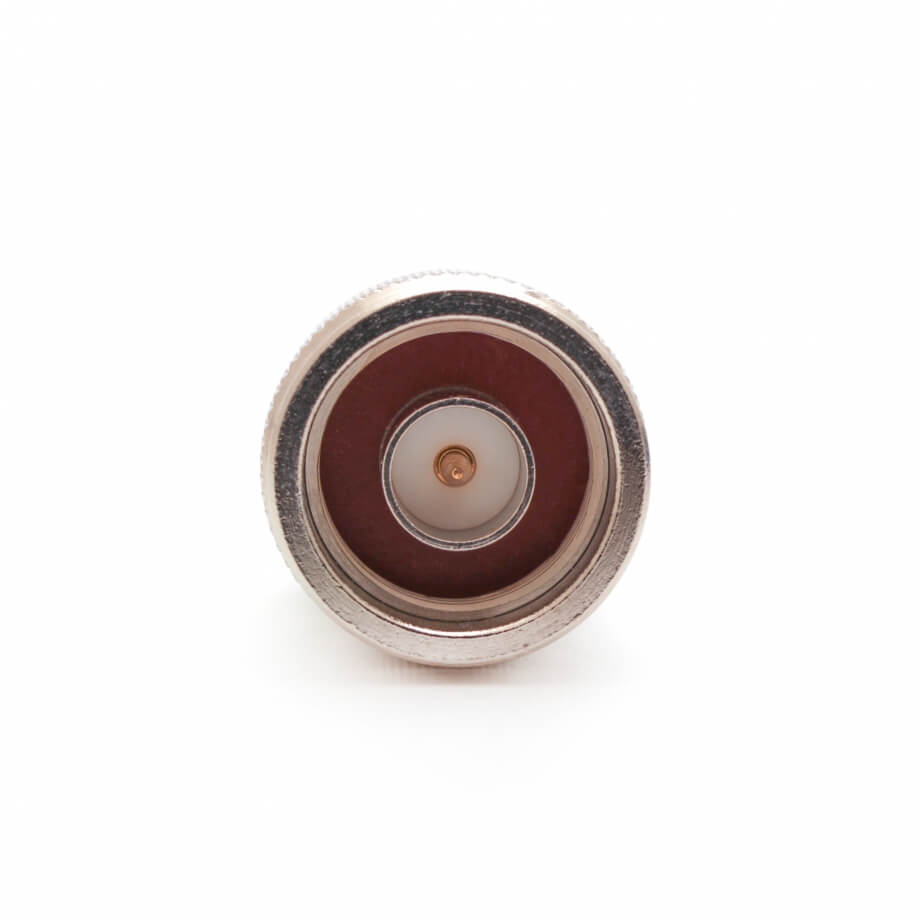

| RF Connectors | (1) N Male |
| Physical Parameters | |
| Color | White |
| Material | Fiberglass |
| Dimensions | Ø22 x 322 mm |
| Operating Temperature | -40 °C to 85 °C |
| Environment | Outdoor |
AOA-2458-79AM
