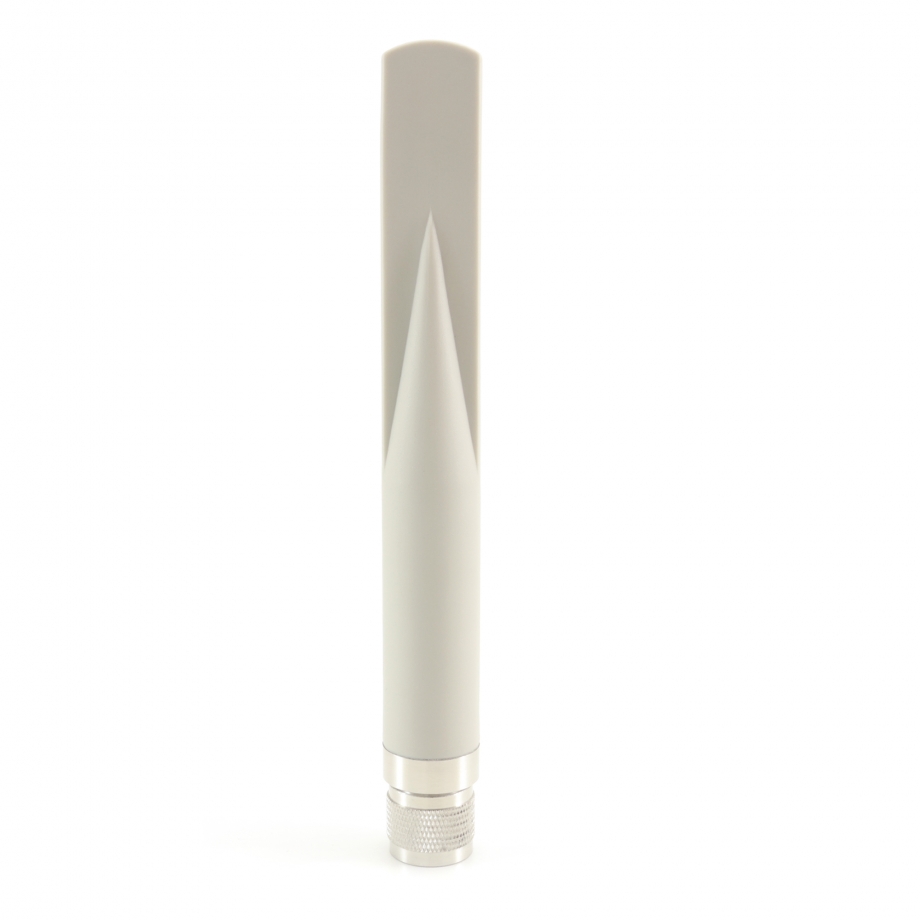

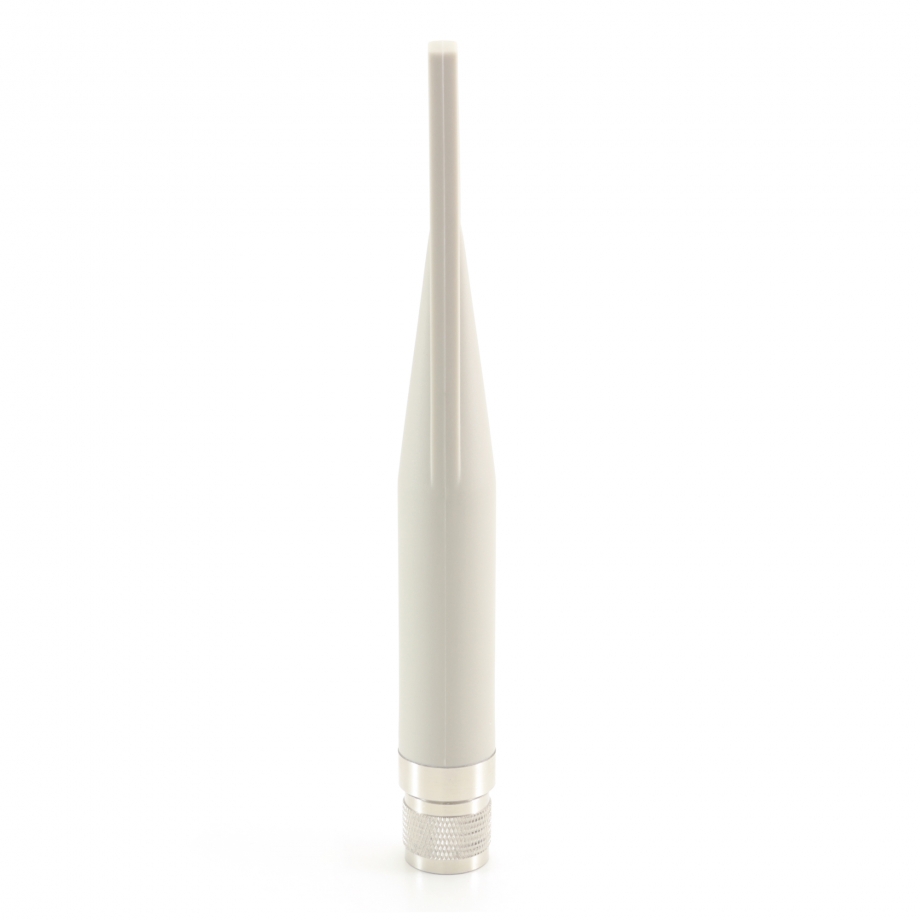

The ALFA AOA-2458-46ACM is a new high quality, low cost dual band 4/6 dBi gain omni-directional 2.4/5 GHz Wi-Fi antenna with N-male connector. The gain is 6 dBi for 5 GHz and 4 dBi for 2.4 GHz. The antenna has weather resistant casing.
מפרט טכני
| Antenna | |
|---|---|
| Antenna Design | Omni |
| Wireless Antenna Frequency Range & Gain | 2.400 – 2.483 (GHz) 4 (dBi), 5.150 – 5.875 (GHz) 6 (dBi) |

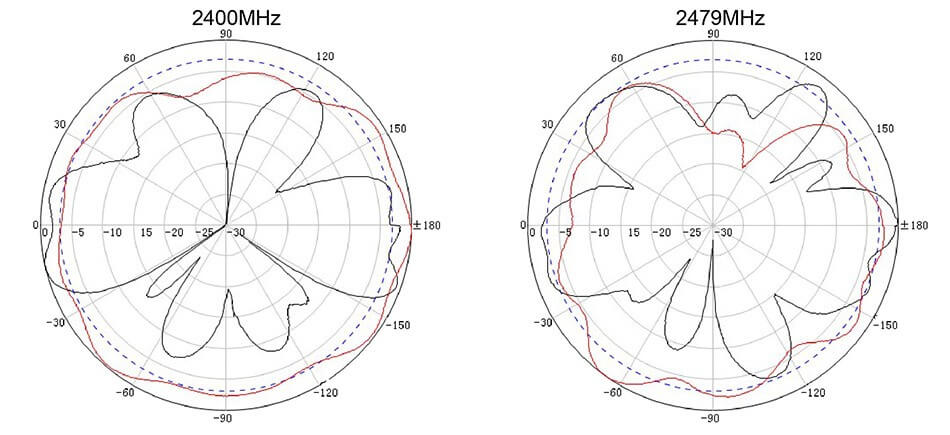

| Beamwidth | 360 ° Vertical |
| Polarization | Linear |

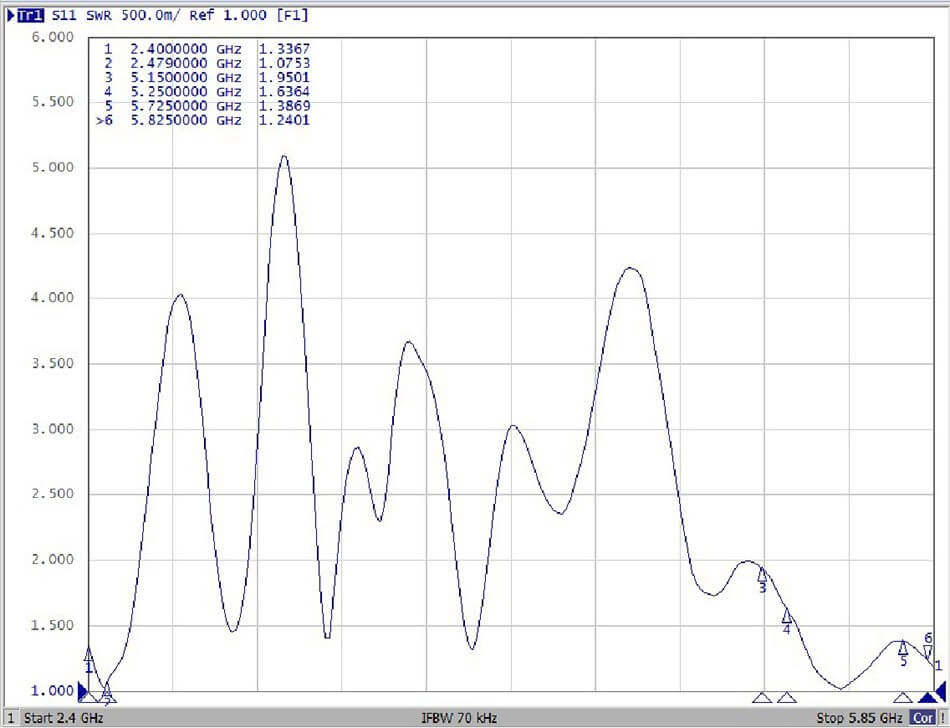

| VSWR | < 2.0 |
| Impedance | 50 Ω |
| Connectors | |

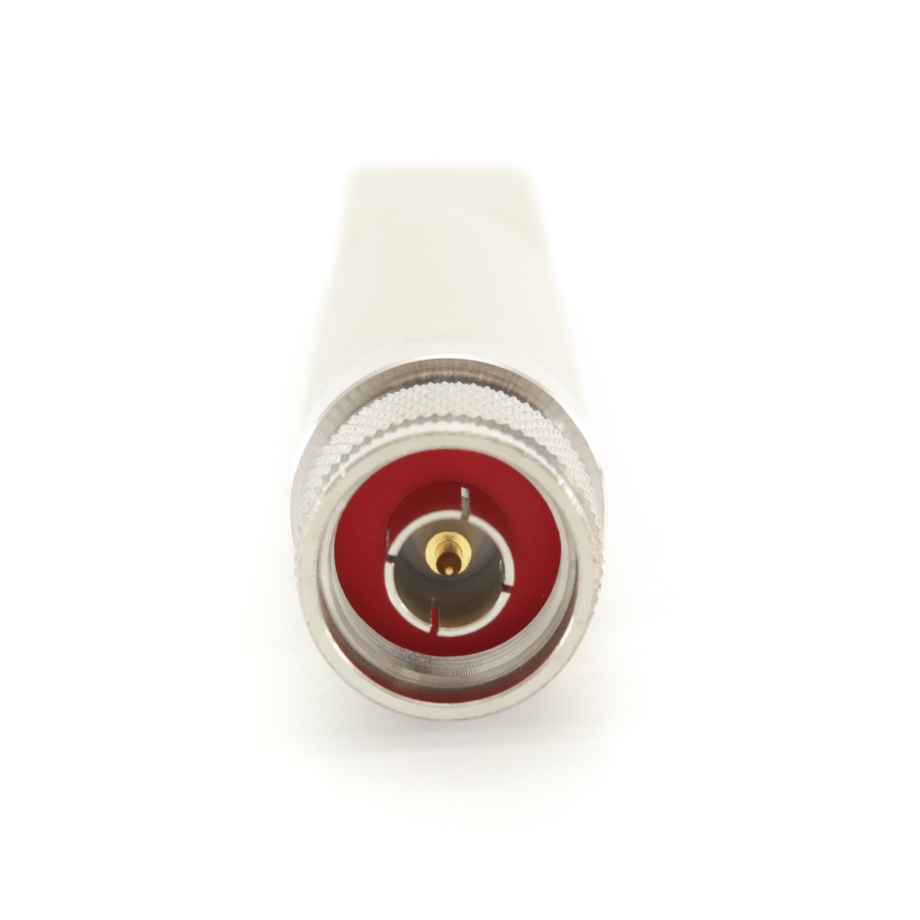

| RF Connectors | (1) N Male |
| Physical Parameters | |
| Dimensions | Ø22 x 180 mm |
| Weight | 0.07 kg |
| Operating Temperature | -40 °C to 85 °C |
AOA-2458-46ACM
