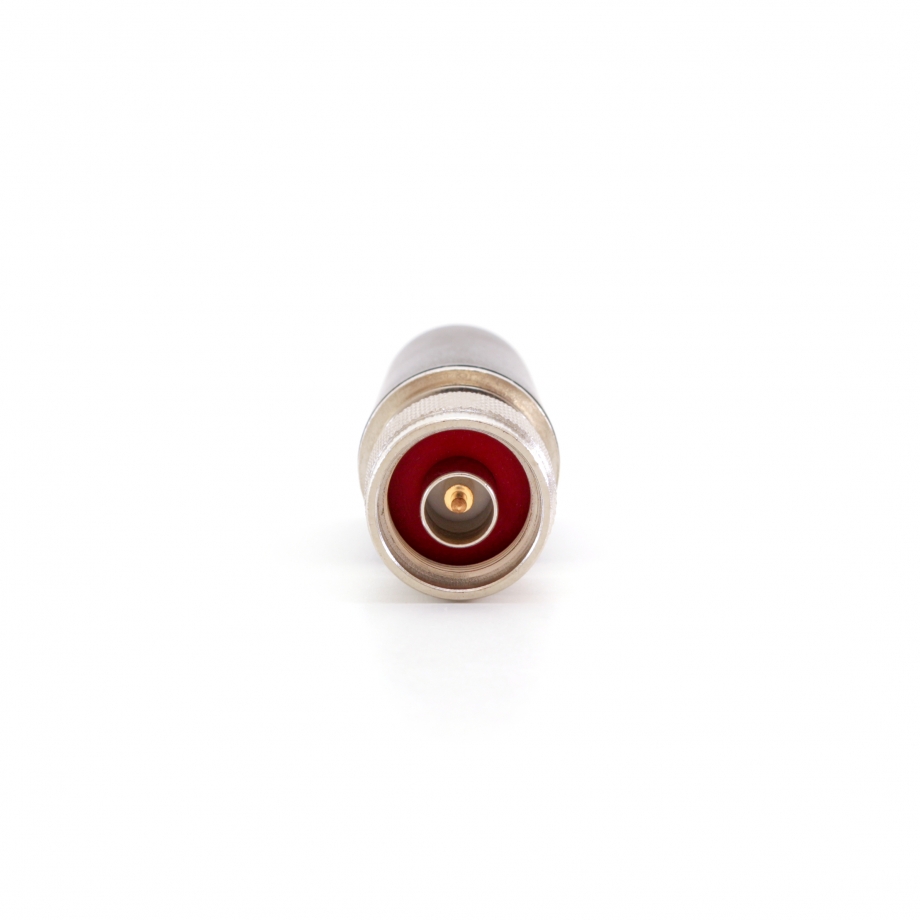

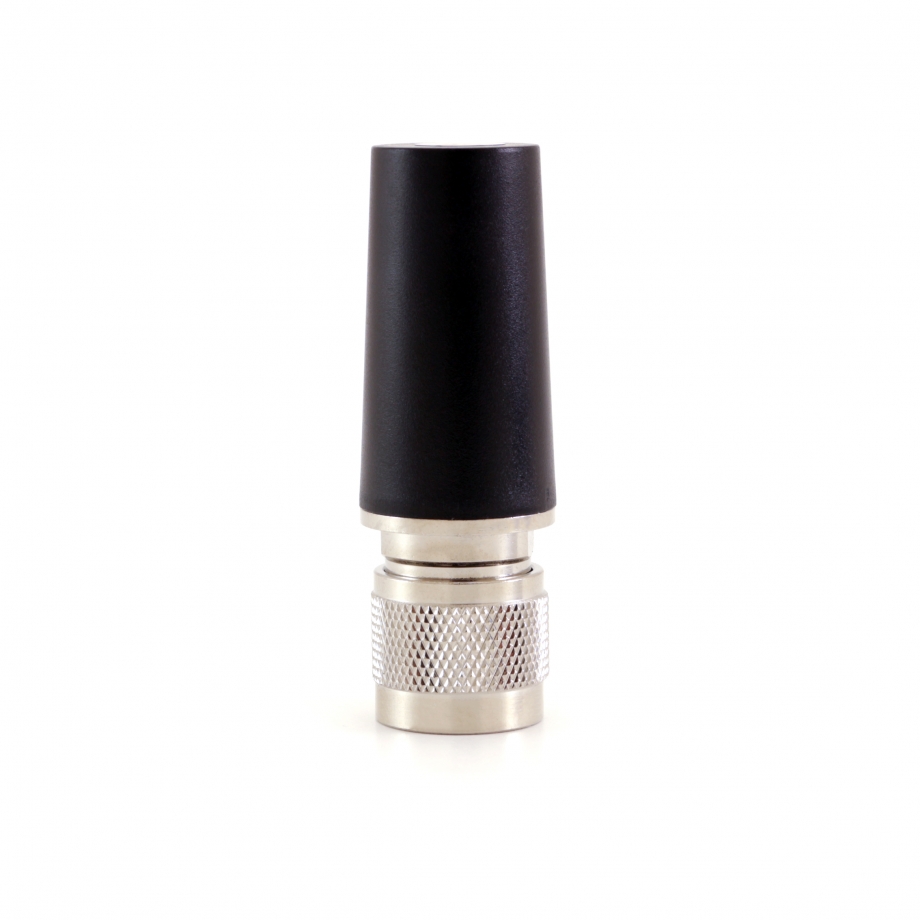

The AOA-4G-2ACM is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use. Operates in frequency bands 698-960 MHz SISO 1×1, 1710-2170 MHz SISO 1×1 and 2500-2700 MHz SISO 1×1 with 2 dBi gain. Equipped with a waterproof N male connector.
מפרט טכני
| Antenna | |
|---|---|
| Antenna Design | Omni |
| Mobile Antenna Frequency Range & Gain | 0.698 – 0.96 (GHz) 2 (dBi), 1.71 – 2.17 (GHz) 2 (dBi), 2.5 – 2.7 (GHz) 2 (dBi) |
| Mobile Antenna Gain | 2 dBi |

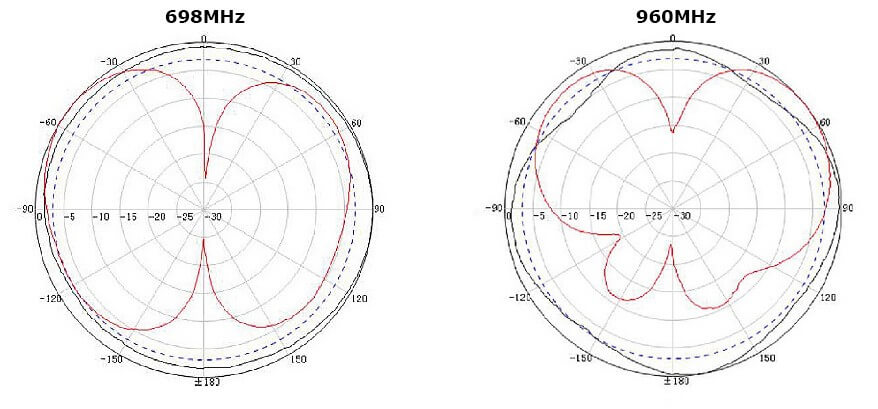

| Beamwidth | 360 ° |
| Impedance | 50 Ω |
| Connectors | |
| RF Connectors | (1) N Male |
| Physical Parameters | |
| Color | Black |
| Material | Plastic |

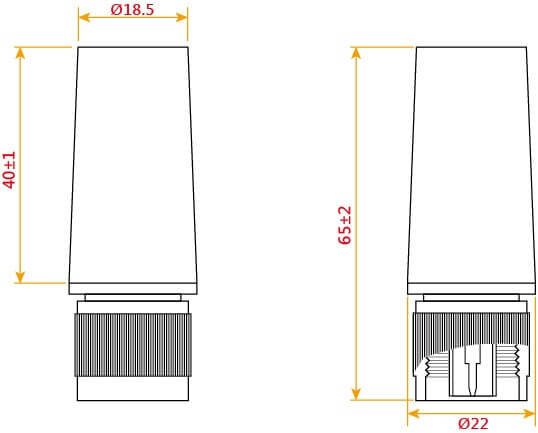

| Dimensions | Ø22 x 64 mm |
| Weight | 0.043 kg |
| Operating Temperature | -40 °C to 85 °C |
AOA-4G-2ACM
