תיאור

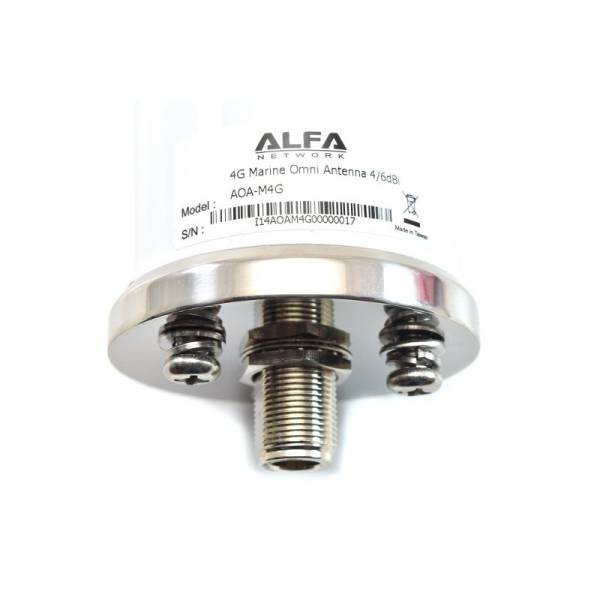

The AOA-M4G is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use with increased protection against water ingress. Operates in frequency bands 698-960 MHz SISO 1×1 with 4 dBi gain and 1710-2700 MHz SISO 1×1 with 6 dBi gain. Equipped with a waterproof N Female connector.
מפרט טכני
| Mobile Network | |
|---|---|
| Mobile Network Generation | 4G (LTE) |
| Antenna | |
| Antenna Design | Omni |
| Mobile Antenna Frequency Range & Gain | 0.698 – 0.96 (GHz) 4 (dBi), 1.71 – 2.7 (GHz) 6 (dBi) |
| Mobile Antenna Gain | 4 dBi, 6 dBi |

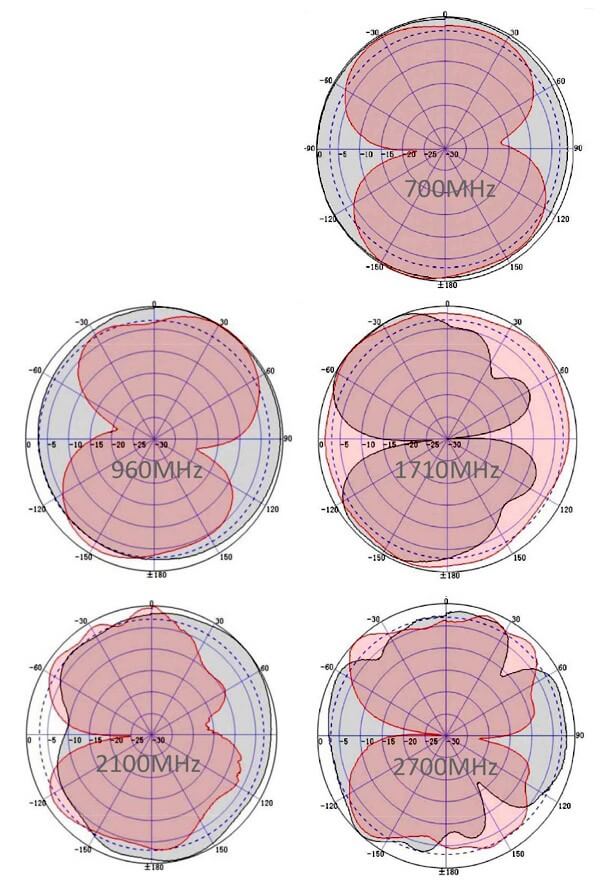

| Beamwidth | 18 ° Vertical, 360 ° Horizontal |
| Polarization | Vertical |
| VSWR | < 1.5 |
| Impedance | 50 Ω |
| Maximum Input Power | 100 W |
| Connectors | |

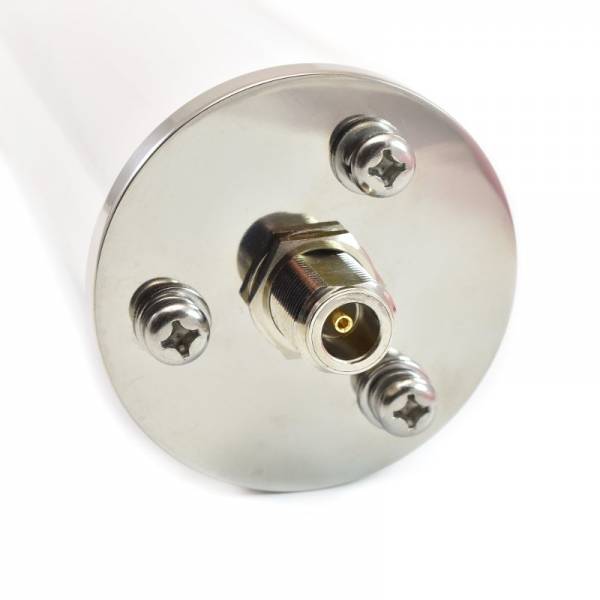

| RF Connectors | (1) N Female |
| Physical Parameters | |
| Color | White |
| Material | Fiberglass |
| Ingress Protection Code | Marine Grade |
| Dimensions | Ø63 x 220 mm |
| Weight | 1.2 kg |
| Operating Temperature | -40 °C to 70 °C |
| Environment | Outdoor |

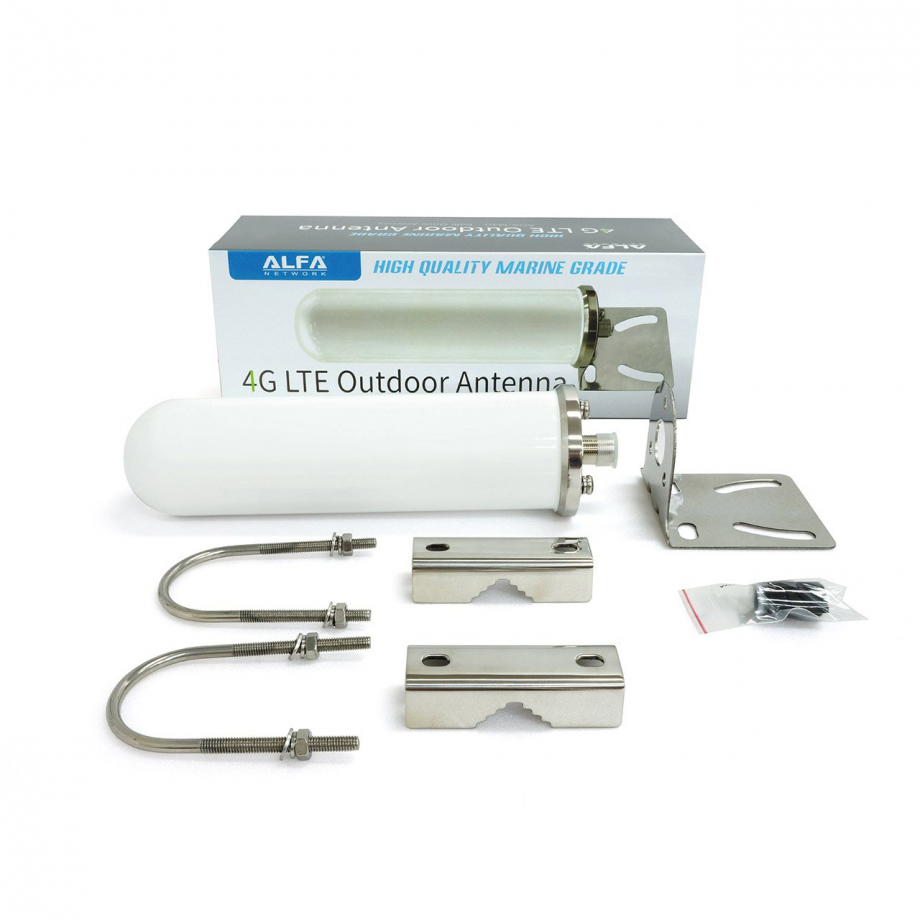

| Mounting Method | Pole Mount |
| Rated Wind Velocity | 60 m/s |
AOA-M4G
