תיאור

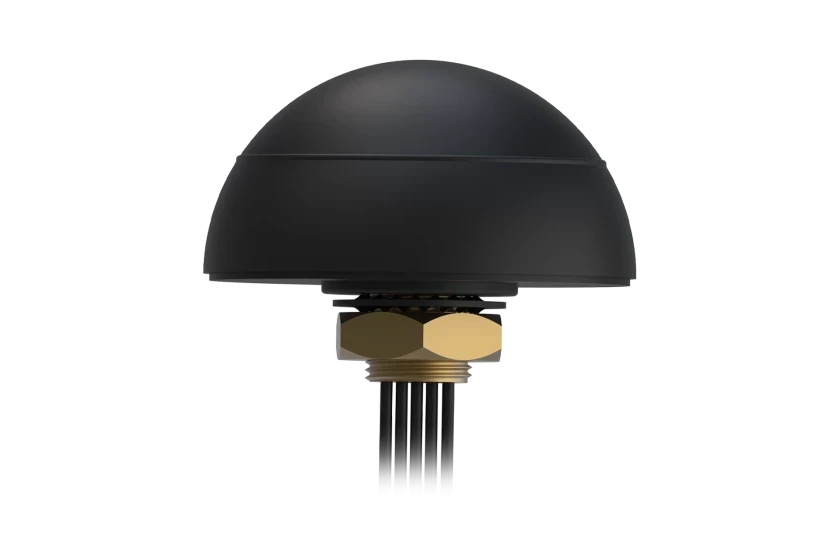

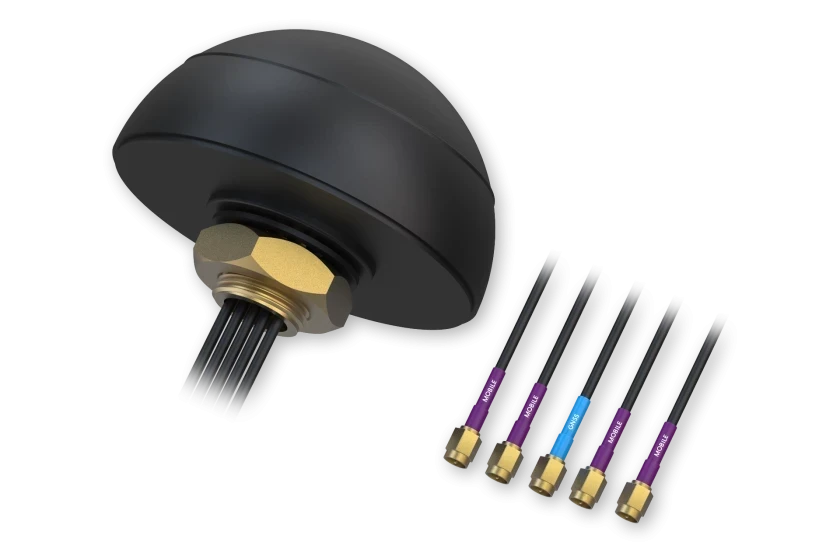

אנטנה גג TelTonika | PR1KCL28 | COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA
 |
 |
תכונות: אנטנה גג TelTonika | PR1KCL28 | COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA
MECHANICAL/ENVIRONMENTAL
-
Mounting method
Screw
-
Radome ingress protection rating
IP65 (exclude cable outlet)
-
Radome material
UV resistant plastic and cable
-
Housing dimensions
Ø 110.0 x 53.0 mm
-

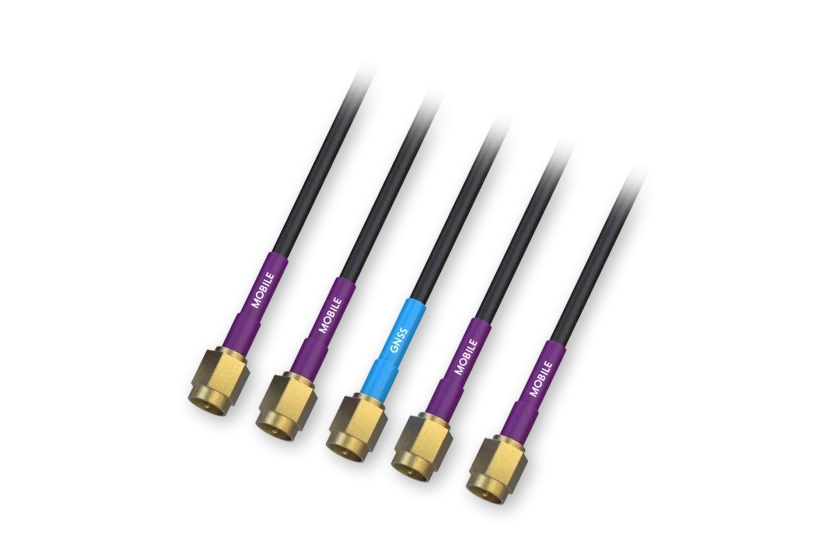

Cable
5x RG174, 3000 mm
-
Operating temperature
– 40 ⁰C ~ +85 ⁰C
-
Weight
525 ± 10 g
-
UV resistance
✓
-
RoHS compliant
✓
GNSS ANTENNA
-
Frequency range
1575.42 ± 3 MHz
-
Polarization
RHCP
-
LNA gain
28 ± 2 dB
-
LNA noise figure
≤ 1.5 dB
-
V.S.W.R
< 2.0
-
Impedance
50 Ω
-
Supply voltage
3 – 5 VDC
-
Current consumption
< 15 mA
-
Connector type and count
SMA Male
LTE MIMO ANTENNA
-
Frequency range
698 – 960, 1710 – 2690 MHz
-
Polarization
Linear
-
Gain
3.0 dBi
-
V.S.W.R
< 3.0
-
Impedance
50 Ω
-
Connector type and count
4x SMA Male
